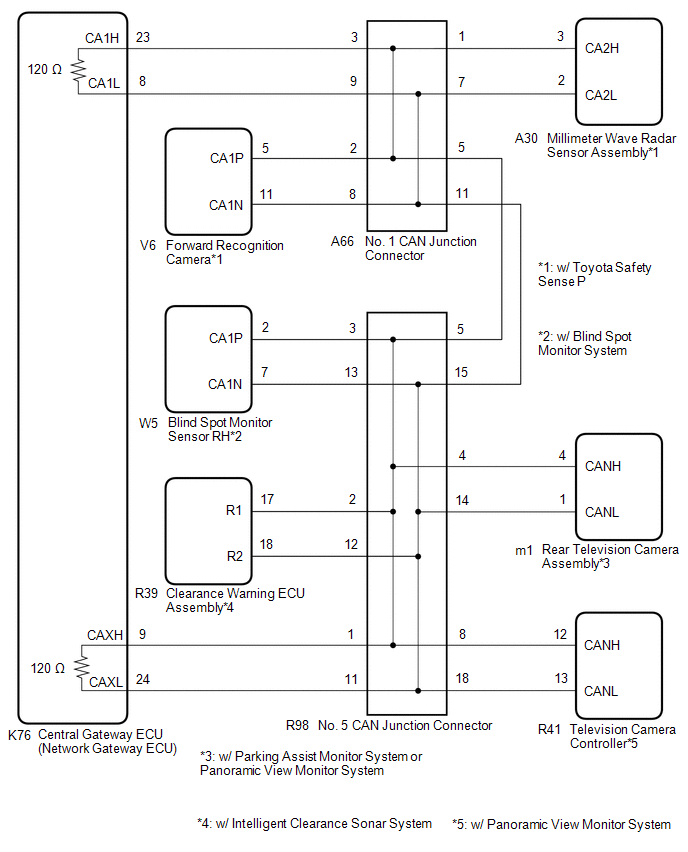

Check Bus 1 Lines for Short Circuit [06/2017 - 08/2018]: Wiring Diagram

GTY755127

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
