Adjustment [02/2017 - ]: Procedure

1. Fully apply the parking brake and chock a wheel.
   WARNING:

   • Make sure to apply the parking brake and chock a wheel before performing this procedure.

     Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • If the vehicle is not secure and the shift lever is moved to N, the vehicle may suddenly move, possibly resulting in an accident or serious injury.

Refer to REMOVAL [02/2017 - ]

Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 09/2019] , or refer to REMOVAL [09/2019 - ]

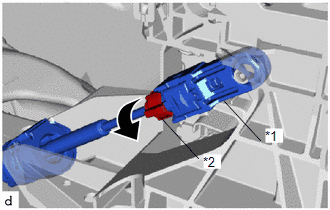

1. Turn the stopper of the adjuster case in the direction shown by the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Adjuster Case
   *2	Stopper

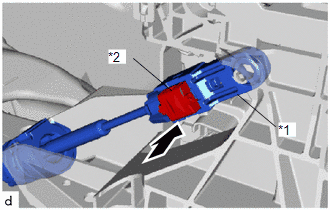

2. Using a precision screwdriver, pull out the lock piece of the adjuster case.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Adjuster Case
   *2	Lock Piece

3. Using your fingers, gently pull the cable rod towards the rear of the vehicle to remove backlash.

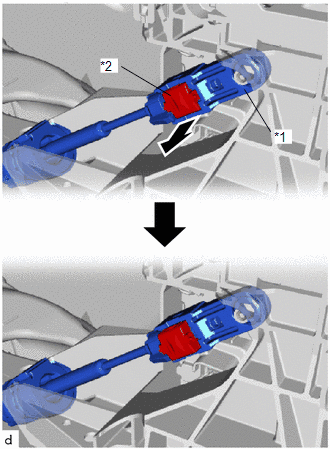

4. Push in the lock piece of the adjuster case to lock it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Adjuster Case
   *2	Lock Piece

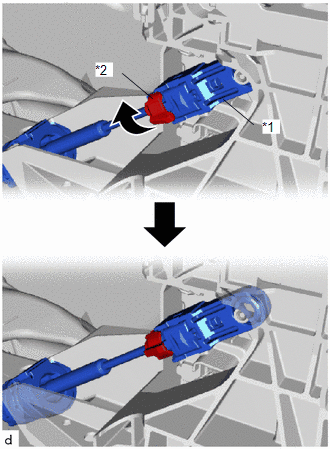

5. Turn the stopper of the adjuster case in the direction shown by the arrow.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	Adjuster Case
   *2	Stopper

   NOTE:

   If the cover is not moved far enough, it will not engage with the lock piece, the cable rod will not be able to lock, and reliable shift operation will not be possible.

Refer to INSTALLATION [02/2017 - 10/2017] , or refer to INSTALLATION [10/2017 - 09/2019] , or refer to INSTALLATION [09/2019 - ]

Refer to INSTALLATION [02/2017 - ]

See step  2
