Installation [02/2017 - 09/2019]: Procedure

1. Install the lock nut and tie rod end sub-assembly LH to the steering gear assembly until the matchmarks are aligned.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Matchmark

   HINT:

   After adjusting the toe-in, tighten the lock nut.

HINT:

Perform the same procedure as for the LH side.

1. Insert the steering link assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Align the protrusion of the steering link assembly with the hole of the No. 1 steering column hole cover sub-assembly, and install the No. 1 steering column hole cover sub-assembly to the steering link assembly.

   HINT:

   Check that the No. 1 steering column hole cover sub-assembly is securely installed.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Install the steering link assembly to the front suspension crossmember sub-assembly with the 2 bolts and 2 new nuts.

   Torque: 133 N*m (1356 kgf*cm, 98 ft.*lbf)

   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • Make sure to tighten the bolts starting from the left side of the vehicle.
4. Install the wire harness clamp bracket to the front suspension crossmember sub-assembly with the bolt.
5. Connect the connector.

1. Connect the tie rod end sub-assembly LH to the steering knuckle LH with the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Torque: 49 N*m (500 kgf*cm, 36 ft.*lbf)

   NOTE:

   • Do not damage the ball joint dust cover.
   • Further tighten the nut up to 60° if the holes for the cotter pin are not aligned.
2. Install a new cotter pin.

HINT:

Perform the same procedure as for the LH side.

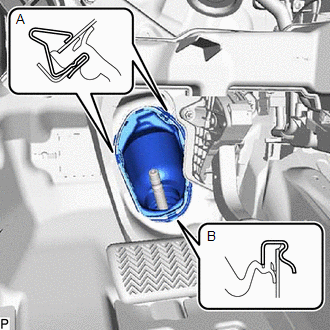

1. Engage the clip (B) to the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Engage the clip (A) to install the No. 1 steering column hole cover sub-assembly to the vehicle body.
   NOTE:

   Be careful not to damage the lip of the No. 1 steering column hole cover sub-assembly.

Refer to PROCEDURE - Step 3

Refer to PROCEDURE - Step 5

Refer to INSTALLATION [02/2017 - 05/2018] , or refer to INSTALLATION [05/2018 - ]

Refer to PROCEDURE - Step 22 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 22 [10/2017 - 09/2019]

Refer to ADJUSTMENT [02/2017 - 10/2017] , or refer to ADJUSTMENT [10/2017 - 12/2017] , or refer to ADJUSTMENT [12/2017 - 09/2019]
