Removal [02/2017 - 08/2020]: Procedure

  1. PRECAUTION

    Refer to PRECAUTION [02/2017 - ]

  2. ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
  3. REMOVE HORN BUTTON ASSEMBLY

    Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 08/2020]

  4. REMOVE STEERING WHEEL ASSEMBLY

    See step  3 [02/2017 - 10/2017] See step  3 [10/2017 - 08/2020]

  5. REMOVE LOWER NO. 1 INSTRUMENT PANEL AIRBAG ASSEMBLY

    Refer to REMOVAL [02/2017 - 12/2017] , or refer to REMOVAL [12/2017 - 08/2020]

  6. REMOVE LOWER STEERING COLUMN COVER SUB-ASSEMBLY
    NOTE:

    Removing the lower steering column cover sub-assembly in the incorrect order will cause the parts to break.

    1. Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
    2. Lock the tilt and telescopic lever.

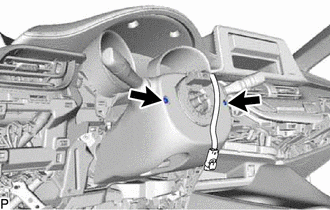

    3. Remove the 2 screws.
      GTY770383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

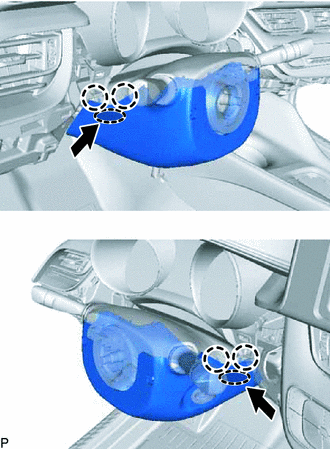

    4. Push the upper steering column cover and disengage the 4 claws as shown in the illustration.
      GTY772943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Push Area
      Push

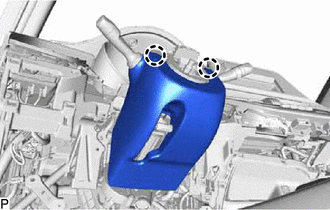

    5. Disengage the 2 claws.
      GTY749013Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. Release the tilt and telescopic lever and fully extend and lift the steering column assembly.
    7. Lock the tilt and telescopic lever.

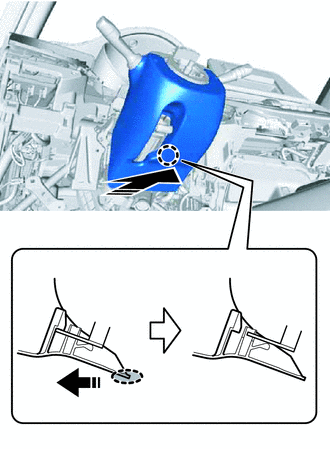

    8. Pull the lower steering column cover sub-assembly toward the rear of the vehicle to disengage the claw and remove the lower steering column cover sub-assembly.
      GTY763417Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction
  7. REMOVE UPPER STEERING COLUMN COVER
    1. Release the tilt and telescopic lever and fully extend and lower the steering column assembly.
    2. Lock the tilt and telescopic lever.

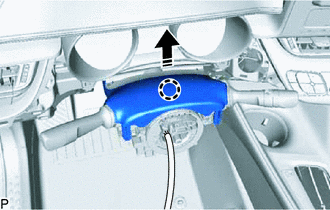

    3. Disengage the claw and separate the upper steering column cover.
      GTY773135Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

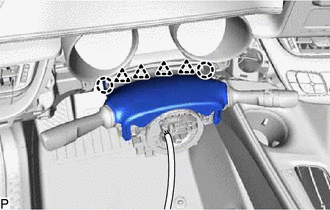

    4. GTY749014Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the 2 claws and 4 clips to remove the upper steering column cover.

  8. REMOVE TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY
    NOTE:
    • Do not replace the spiral cable with sensor sub-assembly with the battery connected and the ignition switch ON.
    • Do not rotate the spiral cable with sensor sub-assembly without the steering wheel assembly installed with the battery connected and the ignition switch ON.
    • Ensure that the steering wheel assembly is installed and aligned straight when inspecting the steering sensor.
    1. Disconnect each connector from the turn signal switch assembly with spiral cable sub-assembly.

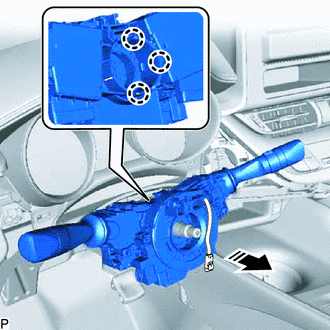

    2. GTY765437Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction

      Disengage the 3 claws to remove the turn signal switch assembly with spiral cable sub-assembly from the steering column assembly.

  9. REMOVE CONSOLE BOX INSERT

    Refer to PROCEDURE - Step 7 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 7 [10/2017 - 09/2019] , or refer to PROCEDURE - Step 7 [09/2019 - ]

  10. REMOVE NO. 1 AIR DUCT

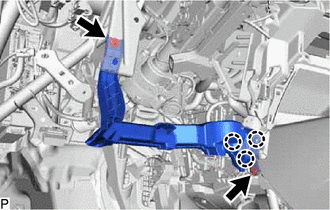

    1. Remove the 2 bolts.
      GTY749011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 3 claws to remove the No. 1 air duct.
  11. REMOVE STOP LIGHT SWITCH ASSEMBLY

    Refer to PROCEDURE - Step 5

  12. REMOVE COLUMN HOLE COVER SILENCER SHEET

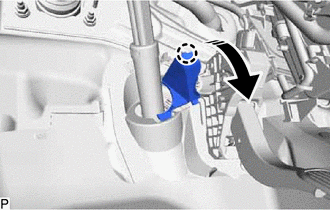

    1. Disengage the claw to open the column hole cover silencer sheet.
      GTY749010Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

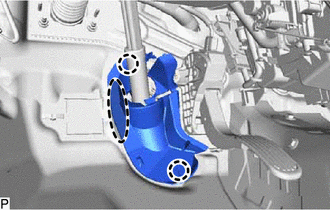

    2. Disengage the 2 claws to remove the column hole cover silencer sheet.
      GTY747386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
  13. SEPARATE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

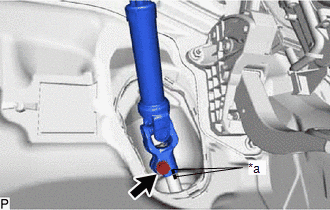

    1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering gear assembly.
      GTY752651Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt.
    3. Separate the No. 2 steering intermediate shaft assembly from the steering gear assembly.
  14. REMOVE NO. 2 STEERING INTERMEDIATE SHAFT ASSEMBLY

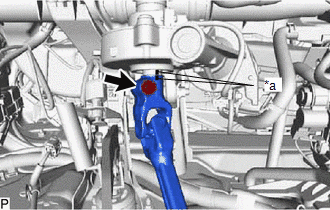

    1. Put matchmarks on the No. 2 steering intermediate shaft assembly and steering column assembly.
      GTY770875Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
    2. Remove the bolt.
    3. Remove the No. 2 steering intermediate shaft assembly from the steering column assembly.
  15. REMOVE STEERING COLUMN ASSEMBLY

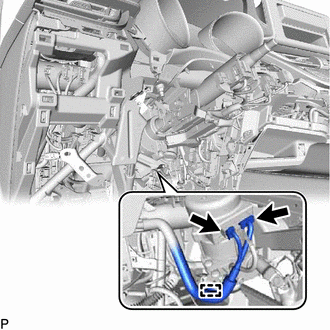

    1. Disconnect the 2 power steering ECU connectors.
      GTY770396Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the power steering ECU wire harness clamp.
    3. Disconnect each connector and disengage each clamp from the steering column assembly.

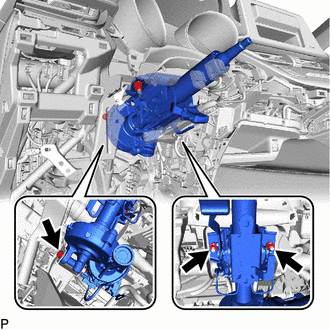

    4. Remove the bolt, 2 nuts and steering column assembly.
      GTY749072Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
