DTC B1830/57: Short in Curtain Shield Squib RH Circuit; DTC B1831/57: Open in Curtain Shield Squib RH Circuit; DTC B1832/57: Short to GND in Curtain Shield Squib RH Circuit; DTC B1833/57: Short to B+ in Curtain Shield Squib RH Circuit [02/2017 - 10/2017]: Wiring Diagram

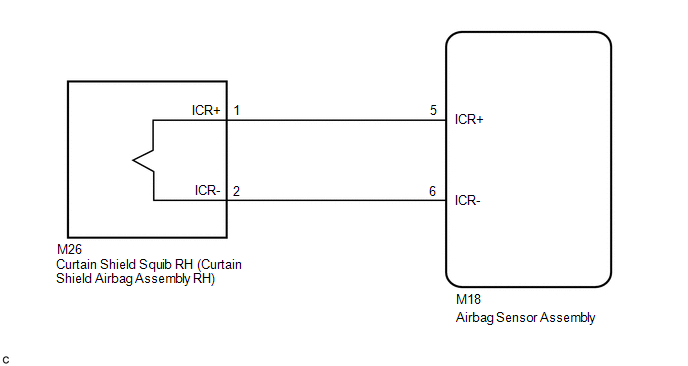

Fig 1: Short In Curtain Shield Squib RH Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
