DTC B1820/55: Short in Side Squib RH Circuit; DTC B1821/55: Open in Side Squib RH Circuit; DTC B1822/55: Short to GND in Side Squib RH Circuit; DTC B1823/55: Short to B+ in Side Squib RH Circuit [10/2017 - 09/2019]: Wiring Diagram

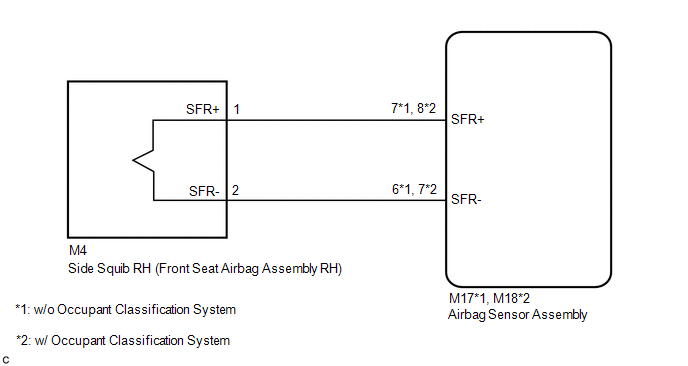

Fig 1: Short In Side Squib RH Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
