DTC B1815/54: Short in Front Passenger Side Squib 2nd Step Circuit; DTC B1816/54: Open in Front Passenger Side Squib 2nd Step Circuit; DTC B1817/54: Short to GND in Front Passenger Side Squib 2nd Step Circuit; DTC B1818/54: Short to B+ in Front Passenger Side Squib 2nd Step Circuit [02/2017 - 09/2019]: Wiring Diagram

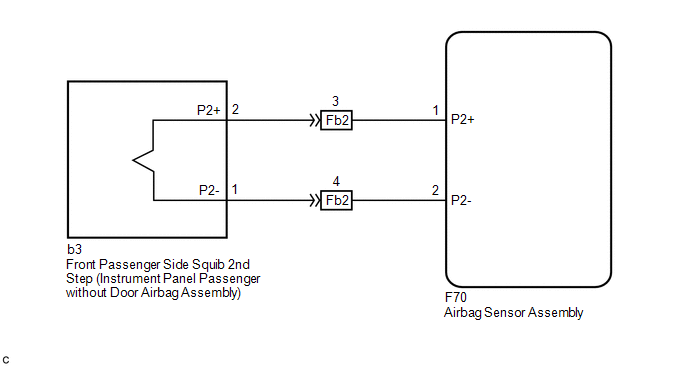

Fig 1: Short In Front Passenger Side Squib 2nd Step Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
