DTC B1810/53: Short in Driver Side Squib 2nd Step Circuit; DTC B1811/53: Open in Driver Side Squib 2nd Step Circuit; DTC B1812/53: Short to GND in Driver Side Squib 2nd Step Circuit; DTC B1813/53: Short to B+ in Driver Side Squib 2nd Step Circuit [02/2017 - 09/2019]: Wiring Diagram

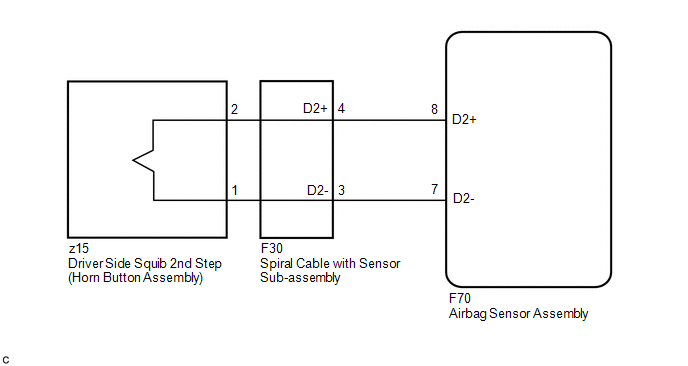

Fig 1: Short In Driver Side Squib 2nd Step Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
