DTC B1805: Short in Front Passenger Squib Circuit; DTC B1806: Open in Front Passenger Squib Circuit; DTC B1807: Short to GND in Front Passenger Side Squib Circuit; DTC B1808: Short to B+ in Front Passenger Side Squib Circuit [09/2019 - ]: Wiring Diagram

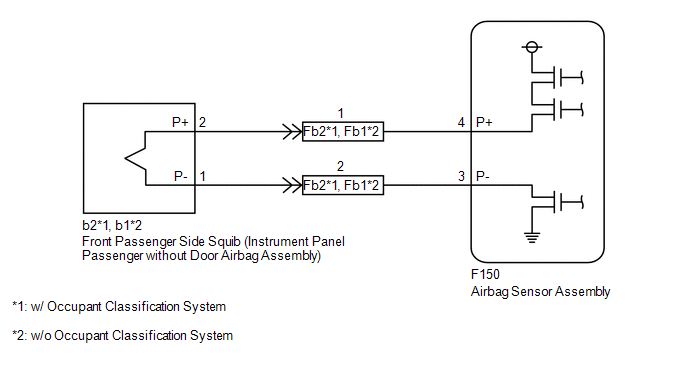

Fig 1: Short In Front Passenger Squib Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
