DTC B1800: Short in Driver Squib Circuit; DTC B1801: Open in Driver Squib Circuit; DTC B1802: Short to GND in Driver Side Squib Circuit; DTC B1803: Short to B+ in Driver Side Squib Circuit [09/2019 - ]: Wiring Diagram

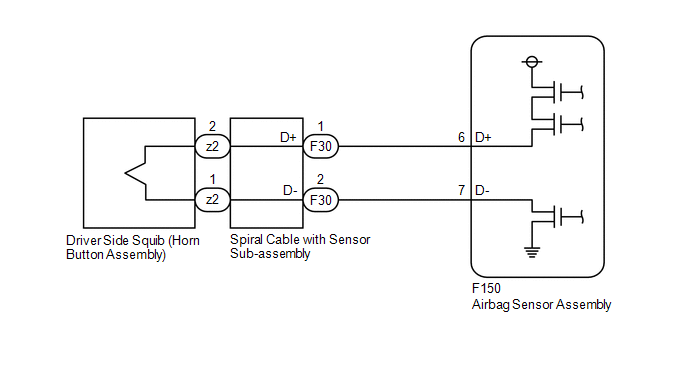

Fig 1: Short In Driver Squib Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
