DTC B1656/38: Seat Belt Buckle Switch LH Circuit Malfunction [02/2017 - 09/2019]: Wiring Diagram

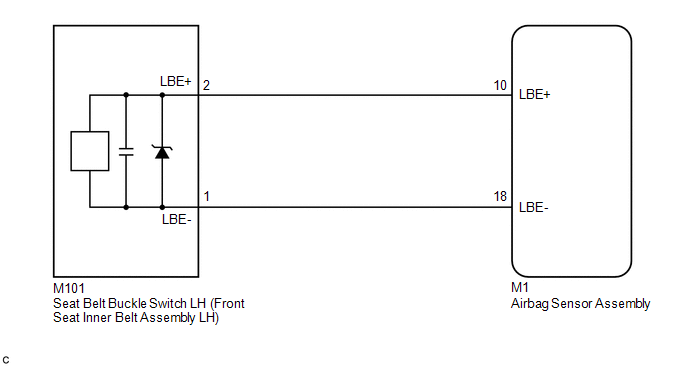

Fig 1: Seat Belt Buckle Switch LH Malfunction Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
