Home >> Toyota >> 2021 >> C-HR XLE >> Repair and Diagnosis >> Restraints >> Air Bag, SRS >> Supplemental Restraint System - Diagnostic Codes (B1000-B1620) >> Airbag System >> DTC B1617/84: Lost Communication with Front Airbag Sensor LH; DTC B1618/84: Front Airbag Sensor LH Initialization Incomplete [02/2017 - 10/2017] >> Procedure

DTC B1617/84: Lost Communication with Front Airbag Sensor LH; DTC B1618/84: Front Airbag Sensor LH Initialization Incomplete [02/2017 - 10/2017]: Procedure

  1. CHECK CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the airbag sensor assembly and front airbag sensor LH. Also check that the connectors that link the engine room main wire and instrument panel wire are properly connected.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the airbag sensor assembly and front airbag sensor LH. Also disconnect the connectors that link the engine room main wire and instrument panel wire.
    5. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE WIRE HARNESS

    Result:

    OK

    See step  2

  2. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (OPEN)
    1. Connect the connectors that link the engine room main wire and instrument panel wire.

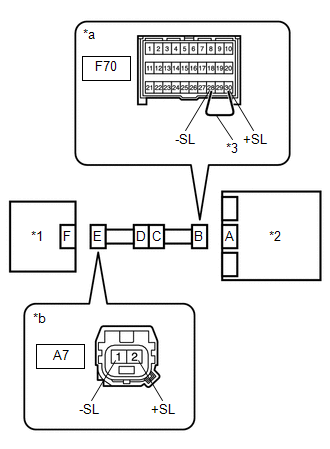

      GTY748499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Service Wire
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Front Airbag Sensor LH)
    2. Using a service wire, connect terminals 30 (+SL) and 28 (-SL) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A7-2 (+SL) - A7-1 (-SL) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  3

  3. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (SHORT)
    1. Disconnect the service wire from connector B.
      GTY746933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A7-2 (+SL) - A7-1 (-SL) Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  4

  4. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (SHORT TO B+)
    1. Connect the cable to the negative (-) battery terminal.
      GTY746933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)
    2. Turn the ignition switch ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A7-2 (+SL) - Body ground Ignition switch ON Below 1 V
      A7-1 (-SL) - Body ground Ignition switch ON Below 1 V
    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  5

  5. CHECK FRONT AIRBAG SENSOR LH CIRCUIT (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A7-2 (+SL) - Body ground Always 1 MΩ or higher
      A7-1 (-SL) - Body ground Always 1 MΩ or higher
      GTY746933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Front Airbag Sensor LH)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  6

  6. CHECK FRONT AIRBAG SENSOR LH
    1. Connect the connector to the airbag sensor assembly.
      GTY765689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
    2. Interchange the front airbag sensor LH with RH and connect the connectors.
    3. Connect the cable to the negative (-) battery terminal.
    4. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [02/2017 - 09/2019]

      Body Electrical > SRS Airbag > Clear DTCs

    5. Turn the ignition switch off.
    6. Turn the ignition switch ON, and wait for at least 60 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [02/2017 - 09/2019]

      Body Electrical > SRS Airbag > Trouble Codes

      HINT:

      Codes other than DTCs B1612/83, B1613/83, B1617/84 and B1618/84 may be output at this time, but they are not related to this check.

      Result

      Result Proceed to
      DTCs B1612/83, B1613/83, B1617/84 and B1618/84 are not output. A
      DTC B1617/84 or B1618/84 is output. B
      DTC B1612/83 or B1613/83 is output. C
    8. Turn the ignition switch off.
    9. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    10. Return the front airbag sensor LH and RH to their original positions and connect the connectors.

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [02/2017 - 10/2017]

    Result:

    B

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [02/2017 - 10/2017]

    Result:

    C

    REPLACE FRONT AIRBAG SENSOR LH. Refer to  REMOVAL [02/2017 - 08/2020]

  7. CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)
    1. Disconnect the instrument panel wire connector from the engine room main wire.
      GTY746157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AF5-2 (+SL) - Body ground Always 1 MΩ or higher
      AF5-1 (-SL) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  8. CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
    1. Disconnect the instrument panel wire connector from the engine room main wire.
      GTY746157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Connect the cable to the negative (-) battery terminal.
    3. Turn the ignition switch ON.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      AF5-2 (+SL) - Body ground Ignition switch ON Below 1 V
      AF5-1 (-SL) - Body ground Ignition switch ON Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  9. CHECK INSTRUMENT PANEL WIRE (SHORT)
    1. Disconnect the instrument panel wire connector from the engine room main wire.
      GTY746157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AF5-2 (+SL) - AF5-1 (-SL) Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  10. CHECK INSTRUMENT PANEL WIRE (OPEN)
    1. Disconnect the instrument panel wire connector from the engine room main wire.

      HINT:

      The service wire has already been inserted into connector B.

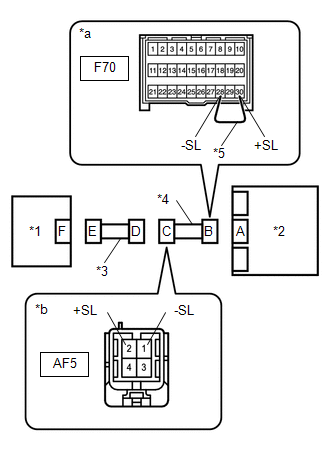

      GTY753399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AF5-2 (+SL) - AF5-1 (-SL) Always Below 1 Ω
    3. Disconnect the service wire from connector B.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE
