DTC B1612/83: Lost Communication with Front Airbag Sensor RH; DTC B1613/83: Front Airbag Sensor RH Initialization Incomplete [02/2017 - 10/2017]: Procedure

  1. CHECK CONNECTORS
    1. Turn the ignition switch off.
    2. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    3. Check that the connectors are properly connected to the airbag sensor assembly and front airbag sensor RH. Also check that the connectors that link the engine room main wire and instrument panel wire are properly connected.

      OK

      The connectors are properly connected.

      HINT:

      If the connectors are not properly connected, reconnect the connectors and proceed to the next inspection.

    4. Disconnect the connectors from the airbag sensor assembly and front airbag sensor RH. Also disconnect the connectors that link the engine room main wire and instrument panel wire.
    5. Check that the terminals of the connectors are not deformed or damaged.

      OK

      The terminals are not deformed or damaged.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    REPLACE WIRE HARNESS

    Result:

    OK

    See step  2

  2. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (OPEN)
    1. Connect the connectors that link the engine room main wire and instrument panel wire.

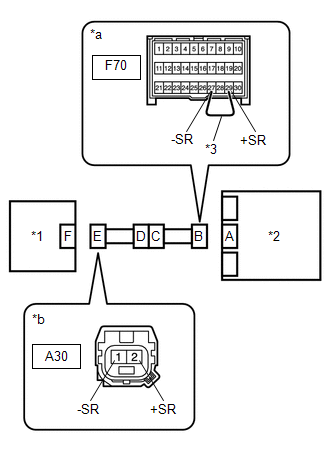

      GTY743227Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *3 Service Wire
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Front Airbag Sensor RH)
    2. Using a service wire, connect terminals 29 (+SR) and 27 (-SR) of connector B.
      NOTE:

      Do not forcibly insert the service wire into the terminals of the connector when connecting the wire.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A30-2 (+SR) - A30-1 (-SR) Always Below 1 Ω

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  10

    Result:

    OK

    See step  3

  3. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT)
    1. Disconnect the service wire from connector B.
      GTY741935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Front Airbag Sensor RH)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A30-2 (+SR) - A30-1 (-SR) Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  9

    Result:

    OK

    See step  4

  4. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO B+)
    1. Connect the cable to the negative (-) battery terminal.
      GTY741935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Front Airbag Sensor RH)
    2. Turn the ignition switch ON.
    3. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      A30-2 (+SR) - Body ground Ignition switch ON Below 1 V
      A30-1 (-SR) - Body ground Ignition switch ON Below 1 V
    4. Turn the ignition switch off.
    5. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  8

    Result:

    OK

    See step  5

  5. CHECK FRONT AIRBAG SENSOR RH CIRCUIT (SHORT TO GROUND)
    1. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      A30-2 (+SR) - Body ground Always 1 MΩ or higher
      A30-1 (-SR) - Body ground Always 1 MΩ or higher
      GTY741935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *a Front view of wire harness connector
      (to Front Airbag Sensor RH)

      Result

      Proceed to
      OK
      NG

    Result:

    NG

    See step  7

    Result:

    OK

    See step  6

  6. CHECK FRONT AIRBAG SENSOR RH
    1. Connect the connector to the airbag sensor assembly.
      GTY765689Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor LH
      *2 Airbag Sensor Assembly
    2. Interchange the front airbag sensor RH with LH and connect the connectors.
    3. Connect the cable to the negative (-) battery terminal.
    4. Clear the DTCs stored in memory.

      Refer to DTC CHECK / CLEAR [02/2017 - 09/2019]

      Body Electrical > SRS Airbag > Clear DTCs

    5. Turn the ignition switch off.
    6. Turn the ignition switch ON, and wait for at least 60 seconds.
    7. Check for DTCs.

      Refer to DTC CHECK / CLEAR [02/2017 - 09/2019]

      Body Electrical > SRS Airbag > Trouble Codes

      HINT:

      Codes other than DTCs B1612/83, B1613/83, B1617/84 and B1618/84 may be output at this time, but they are not related to this check.

      Result

      Result Proceed to
      DTCs B1612/83, B1613/83, B1617/84 and B1618/84 are not output. A
      DTC B1617/84 or B1618/84 is output. B
      DTC B1612/83 or B1613/83 is output. C
    8. Turn the ignition switch off.
    9. Disconnect the cable from the negative (-) battery terminal.
      WARNING:

      Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    10. Return the front airbag sensor RH and LH to their original positions and connect the connectors.

    Result:

    A

    USE SIMULATION METHOD TO CHECK. Refer to  HOW TO PROCEED WITH TROUBLESHOOTING [02/2017 - 10/2017]

    Result:

    B

    REPLACE FRONT AIRBAG SENSOR RH. Refer to  REMOVAL [02/2017 - 08/2020]

    Result:

    C

    REPLACE AIRBAG SENSOR ASSEMBLY. Refer to  REMOVAL [02/2017 - 10/2017]

  7. CHECK INSTRUMENT PANEL WIRE (SHORT TO GROUND)
    1. Disconnect the instrument panel wire connector from the engine room main wire.
      GTY746157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AF5-4 (+SR) - Body ground Always 1 MΩ or higher
      AF5-3 (-SR) - Body ground Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  8. CHECK INSTRUMENT PANEL WIRE (SHORT TO B+)
    1. Disconnect the instrument panel wire connector from the engine room main wire.
      GTY746157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Connect the cable to the negative (-) battery terminal.
    3. Turn the ignition switch ON.
    4. Measure the voltage according to the value(s) in the table below.

      Standard Voltage

      Tester Connection Switch Condition Specified Condition
      AF5-4 (+SR) - Body ground Ignition switch ON Below 1 V
      AF5-3 (-SR) - Body ground Ignition switch ON Below 1 V

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  9. CHECK INSTRUMENT PANEL WIRE (SHORT)
    1. Disconnect the instrument panel wire connector from the engine room main wire.
      GTY746157Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *a Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AF5-4 (+SR) - AF5-3 (-SR) Always 1 MΩ or higher

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE

  10. CHECK INSTRUMENT PANEL WIRE (OPEN)
    1. Disconnect the instrument panel wire connector from the engine room main wire.

      HINT:

      The service wire has already been inserted into connector B.

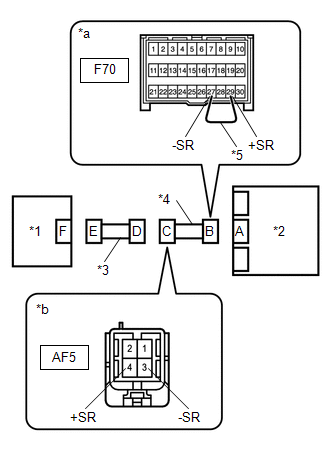

      GTY744920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Front Airbag Sensor RH
      *2 Airbag Sensor Assembly
      *3 Engine Room Main Wire
      *4 Instrument Panel Wire
      *5 Service Wire
      *a Front view of wire harness connector
      (to Airbag Sensor Assembly)
      *b Front view of wire harness connector
      (to Engine Room Main Wire)
    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection Condition Specified Condition
      AF5-4 (+SR) - AF5-3 (-SR) Always Below 1 Ω
    3. Disconnect the service wire from connector B.

      Result

      Proceed to
      OK
      NG

    Result:

    OK

    REPLACE ENGINE ROOM MAIN WIRE

    Result:

    NG

    REPLACE INSTRUMENT PANEL WIRE
