Installation [05/2018 - ]: Procedure

INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM KIT

NOTE:

When replacing a worn rear disc brake pad, the rear disc brake anti-squeal shim kit must be replaced together with the rear disc brake pad.

Install the rear disc brake anti-squeal shim to each rear disc brake pad.

NOTE:

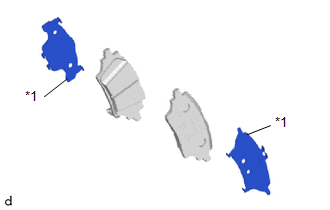

Install the rear disc brake anti-squeal shim in the correct positions and direction as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	Rear Disc Brake Anti-squeal Shim

INSTALL REAR DISC BRAKE PAD KIT

WARNING:

After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.

Push back the rear disc brake piston.
NOTE:
Do not forcibly install the rear disc brake piston into rear disc brake cylinder assembly.
Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
NOTE:
Make sure that disc brake grease is applied onto the lining surface of the rear disc brake pad.

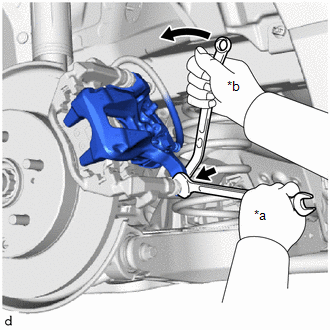

Hold the rear disc brake cylinder slide pin and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with a new bolt.

Torque: 34.5 N*m (352 kgf*cm, 25 ft.*lbf)

*a	Hold
*b	Turn

Depress the brake pedal several times.

ADD BRAKE FLUID
Refer to ON-VEHICLE INSPECTION [02/2017 - ]
INSTALL REAR WHEEL
Refer to INSTALLATION [05/2018 - ]
NORMAL CONDITION RECOVERY
Refer to TEST MODE PROCEDURE [02/2017 - ]
