Installation [09/2019 - ]: Procedure

  1. INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM KIT
    NOTE:
    • When replacing worn rear disc brake pads, the rear disc brake anti-squeal shims and rear disc brake pad wear indicator plates must be replaced together with the rear disc brake pads.
    • Install each rear disc brake pad wear indicator plate in the correct position and direction.
    • Install the rear disc brake anti-squeal shims in the correct positions and directions.
    • Do not apply disc brake grease to the lining surface of the rear disc brake pad.
    1. Check the rear disc brake pad.
      GTY889484Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inner Side (Orange)
      *b Outer Side (Yellow green)

      HINT:

      If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

    2. Apply disc brake grease to the inner side of the rear disc brake anti-squeal shim as shown in the illustration.
      GTY855891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Disc Brake Grease
    3. Install 2 new rear disc brake pad wear indicator plates to each rear disc brake pad.
      GTY881843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear No. 1 Disc Brake Anti-squeal Shim
      *2 Rear No. 2 Disc Brake Anti-squeal Shim
      *3 Rear Disc Brake Anti-squeal Shim
      *4 Rear Disc Brake Pad Wear Indicator Plate
      *a Claw
      NOTE:

      Install the rear disc brake pad wear indicator plate in the correct positions and direction.

    4. Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim to rear disc brake pad (Inner Side).
    5. Install the rear disc brake anti-squeal shim to the rear disc brake pad (Outer Side).
      NOTE:

      Install the rear disc brake anti-squeal shim so that it claw is toward the outside of the vehicle.

  2. INSTALL REAR DISC BRAKE PAD KIT
    WARNING:
    • Be careful not to get pinched by the rear disc brake cylinder assembly or other parts when installing the rear disc brake pads.
    • After lifting up the rear disc brake cylinder assembly, secure it in place before performing any work on it.
      GTY771241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • The rear disc brake cylinder assembly could fall, pinching hands or fingers and causing injury.
    1. Push back the rear disc brake piston.
      NOTE:
      • Make sure the brake fluid does not overflow from the reservoir.
      • Do not forcibly push in the rear disc brake piston.
    2. Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
      NOTE:
      • Keep the friction surfaces of the rear disc brake pads and rear disc free from oil and grease.
      • Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.
    3. Hold the rear disc brake cylinder slide pin and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with a new bolt.

      Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)

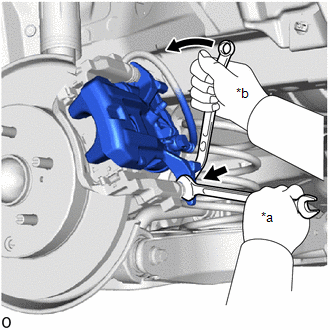

      GTY891481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
    4. Connect the No. 2 parking brake wire assembly to the parking brake actuator assembly.
    5. Depress the brake pedal several times.
  3. ADD BRAKE FLUID

    Refer to ON-VEHICLE INSPECTION [02/2017 - ]

  4. INSTALL REAR WHEEL

    Refer to INSTALLATION [05/2018 - ]

  5. NORMAL CONDITION RECOVERY

    Refer to TEST MODE PROCEDURE [02/2017 - ]
