Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 1

  2. REMOVE IGNITION COIL ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SPARK PLUG

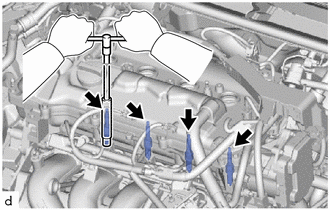

    1. Remove the 4 spark plugs from the cylinder head sub-assembly.
      GTY774415Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE:

      If a spark plug has been struck or dropped, replace it.

      HINT:

      Arrange the removed parts in the correct order.
