Removal [02/2017 - 05/2018]: Procedure

  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Refer to PROCEDURE - Step 1

  2. REMOVE NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 7 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 7 [10/2017 - 08/2020]

  3. REMOVE FAN AND GENERATOR V BELT

    Refer to REMOVAL [02/2017 - ]

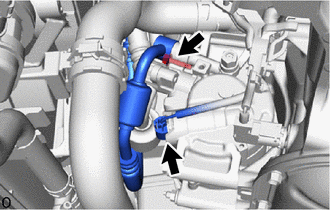

  4. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Disconnect the connector.
      GTY773962Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt to disconnect the discharge hose sub-assembly from the compressor with pulley assembly.
    3. Remove the O-ring from the discharge hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  5. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

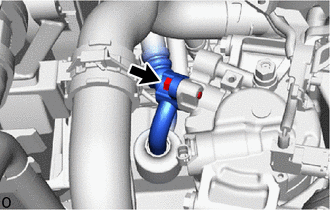

    1. Remove the bolt to disconnect the suction hose sub-assembly from the compressor with pulley assembly.
      GTY765219Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the O-ring from the suction hose sub-assembly.
      NOTE:

      Seal the openings of the disconnected parts using vinyl tape to prevent moisture and foreign matter from entering them.

  6. REMOVE COMPRESSOR WITH PULLEY ASSEMBLY

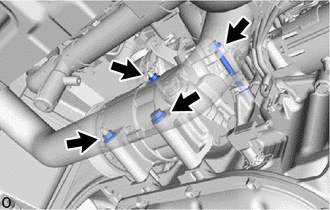

    1. Remove the 2 bolts and 2 nuts.
      GTY765218Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

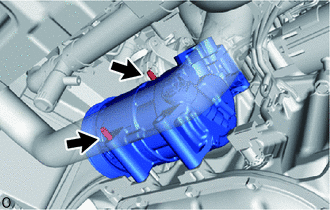

    2. Using an E8 "TORX" socket wrench, remove the 2 stud bolts and compressor with pulley assembly.

      HINT:

      Remove the compressor with pulley assembly from the vehicle with the stud bolts remaining in the compressor with pulley assembly.

      GTY761121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
