Home >> Toyota >> 2021 >> C-HR XLE >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning System - Service Information (1 Of 3) >> COMPRESSOR (for VALEO Made) >> Installation [05/2018 - 12/2021] >> Procedure

Installation [05/2018 - 12/2021]: Procedure

  1. ADJUST COMPRESSOR OIL
    1. When replacing the compressor with pulley assembly with a new one, gradually discharge the refrigerant gas from the service valve. Then drain the following amount of oil from the new compressor with pulley assembly before installation, so that the amount of oil contained in it is the same as that in the cooler compressor with pulley assembly to be replaced.
      GTY761194Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Standard

      Standard: (The amount of oil inside a new cooler compressor with pulley assembly: 80 (+15) cc (2.71 (+0.507) fl.oz.)) - (The amount of oil remaining in the removed compressor with pulley assembly A) = (The amount of oil to be removed when replacing the cooler compressor with pulley assembly)

      HINT:

      A new cooler compressor with pulley assembly is filled with sufficient oil for the whole cycle. Therefore, it is necessary to drain residual oil from the condenser and cooling unit. Example: If A is 45 cc (1.52 fl.oz.). Since this time 80 cc (2.82fl.oz.) - 45 cc (1.52 fl.oz.) =35 cc (1.18 fl.oz.), drain 35 cc (1.18 fl.oz.) of the oil from the new cooler compressor with pulley assembly.

      NOTE:
      • When A exceeds the standard oil fill volume specified for the compressor with pulley assembly by part number, install the compressor with pulley assembly without adjusting the oil volume. Example: If A is 80 cc (2.71 fl.oz.), A is greater than 80 cc (2.71 fl.oz.) and less than 95 cc (3.21 fl.oz.), so install the cooler compressor with pulley assembly as is.
      • When checking the compressor oil level, observe the precautions for cooler removal/installation.
      • If a new cooler compressor with pulley assembly is installed without removing the same amount of oil as is remaining in the vehicle pipes, the amount of oil will be too large. This prevents heat exchange in the refrigerant cycle and will cause a refrigeration failure.
      • If the amount of oil remaining in the removed compressor with pulley assembly is too low, check for an oil leak.
      • Use VC100YF or equivalent for compressor oil.
  2. INSTALL COMPRESSOR WITH PULLEY ASSEMBLY
    1. Using an E8 "TORX" socket wrench, temporarily install the compressor with pulley assembly with the 2 stud bolts.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

    2. Temporarily install the 2 bolts and 2 nuts.
      GTY940015Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

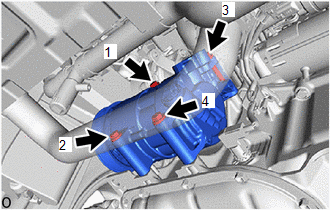

    3. Tighten the 2 bolts and 2 nuts to install the compressor with pulley assembly in the order as shown in the illustration.

      Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

  3. CONNECT SUCTION HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the suction hose sub-assembly.
    2. Sufficiently apply compressor oil to a new O-ring and the fitting surface of the compressor with pulley assembly.

      Compressor Oil

      VC100YF or equivalent

    3. Install the O-ring to the suction hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction hose sub-assembly to the compressor with pulley assembly with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

  4. CONNECT DISCHARGE HOSE SUB-ASSEMBLY
    1. Remove the vinyl tape from the discharge hose sub-assembly.
    2. Apply sufficient compressor oil to a new O-rings and fitting surfaces of the cooler compressor with pulley assembly.

      Compressor Oil

      VC100YF or equivalent

    3. Install the O-ring to the discharge hose sub-assembly.
      NOTE:

      Keep the O-ring and O-ring fitting surface free of foreign matter.

    4. Connect the suction hose sub-assembly to the compressor with pulley assembly with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

    5. Connect the connector.
  5. INSTALL FAN AND GENERATOR V BELT

    Refer to INSTALLATION [02/2017 - ]

  6. INSTALL NO. 1 ENGINE UNDER COVER

    Refer to PROCEDURE - Step 61

  7. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT (for HFC-134a (R134a))

    Refer to PROCEDURE - Step 2

  8. CHARGE AIR CONDITIONING SYSTEM WITH REFRIGERANT (for HFO-1234yf (R1234yf))

    Refer to PROCEDURE - Step 2

  9. WARM UP ENGINE (for HFC-134a (R134a))

    Refer to PROCEDURE - Step 3

  10. WARM UP ENGINE (for HFO-1234yf (R1234yf))

    Refer to PROCEDURE - Step 3

  11. INSPECT FOR REFRIGERANT LEAK (for HFC-134a (R134a))

    Refer to PROCEDURE - Step 4

  12. INSPECT FOR REFRIGERANT LEAK (for HFO-1234yf (R1234yf))

    Refer to PROCEDURE - Step 4
