Removal [02/2017 - 10/2017]: Procedure

Refer to REPLACEMENT [02/2017 - ]

See step  1

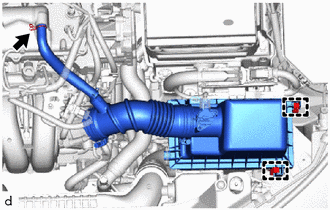

1. Slide the clip and disconnect the No. 2 ventilation hose from the cylinder head cover sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the 2 clamps.

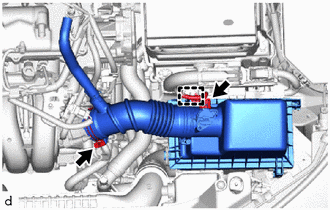

3. Disconnect the mass air flow meter connector and disengage the wire harness clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Loosen the hose clamp and disconnect the air cleaner hose assembly from the throttle body assembly.

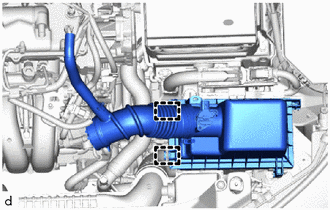

5. Disengage the 2 guides and remove the air cleaner cap with air cleaner hose from the air cleaner case sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the throttle body assembly connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

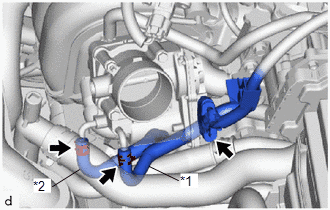

   *1	No. 1 Water By-pass Hose
   *2	No. 2 Water By-pass Hose

2. Slide the 2 clips and disconnect the No. 1 water by-pass hose and No. 2 water by-pass hose from the throttle body assembly.
3. w/ Stud Bolt:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

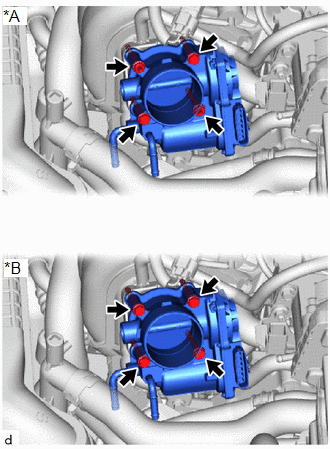

   *A	w/ Stud Bolt
   *B	w/o Stud Bolt

   1. Remove the 2 bolts, 2 nuts and throttle body assembly from the intake manifold.
      NOTE:

      If the throttle body assembly has been struck or dropped, replace it.

4. w/o Stud Bolt:
   1. Remove the 4 bolts and throttle body assembly from the intake manifold.
      NOTE:

      If the throttle body assembly has been struck or dropped, replace it.

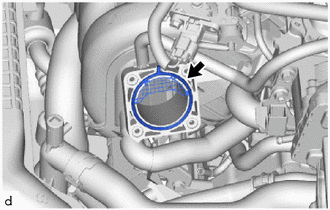

1. Remove the throttle body gasket from the intake manifold.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
