Removal [02/2017 - 10/2017]: Procedure

Refer to REMOVAL [02/2017 - 10/2017]

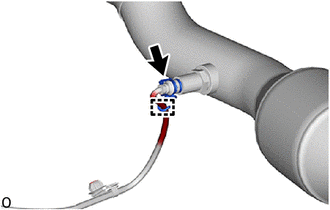

1. Disengage the wire harness clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Remove the wire harness clamp bracket from the heated oxygen sensor.
3. Using SST, remove the heated oxygen sensor from the front exhaust pipe assembly (TWC: Front and Rear Catalyst).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • SST: 09224-00012
   NOTE:

   If the heated oxygen sensor has been struck or dropped, replace it.
