Removal [02/2017 - ]: Procedure

  1. REMOVE FRONT WHEEL RH

    Refer to REMOVAL [02/2017 - 05/2018] , or refer to REMOVAL [05/2018 - ]

  2. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - STEP 1

  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

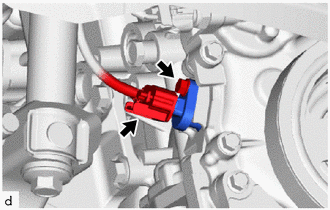

      GTY767276Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and crankshaft position sensor from the cylinder block sub-assembly.
      NOTE:

      If the crankshaft position sensor has been struck or dropped, replace it.
