Removal [02/2017 - ]: Procedure

  1. REMOVE NO. 2 CYLINDER HEAD COVER

    See step  1

  2. REMOVE CAMSHAFT POSITION SENSOR (for Exhaust Side)
    1. Disconnect the camshaft position sensor connector.

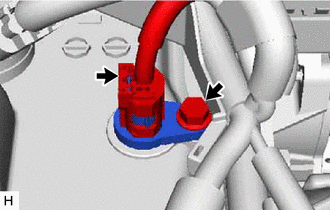

      GTY769582Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.

  3. REMOVE CAMSHAFT POSITION SENSOR (for Intake Side)
    1. Disconnect the camshaft position sensor connector.

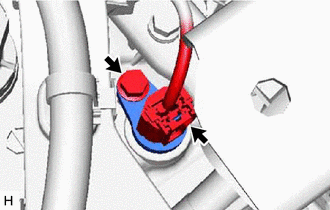

      GTY745295Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt and camshaft position sensor from the cylinder head cover sub-assembly.
      NOTE:

      If the camshaft position sensor has been struck or dropped, replace it.
