Removal [02/2017 - 08/2020]: Procedure

REMOVE CONTINUOUSLY VARIABLE TRANSAXLE ASSEMBLY
- When Using the Engine Support Bridge:
  Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 09/2019] , or refer to REMOVAL [09/2019 - 08/2020]
- When Not Using the Engine Support Bridge:
  Refer to REMOVAL [02/2017 - 08/2020]

REMOVE DRIVE PLATE AND RING GEAR SUB-ASSEMBLY

Using height adjustment attachments and plate lift attachments, place the engine assembly on a flat, level surface.
NOTE:
- Using height adjustment attachments and plate lift attachments, place the engine assembly horizontally.
- To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
- Using an engine sling device and engine lift, secure the engine assembly before servicing.

Using SST, hold the crankshaft pulley.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Part number of installation bolt for SST (crankshaft pulley holding tool): 91551-00850 (quantity: 2)

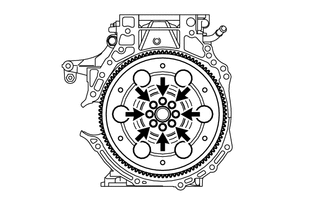

Remove the 8 bolts, rear drive plate spacer, drive plate and ring gear sub-assembly and front drive plate spacer from the crankshaft.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR ENGINE OIL SEAL

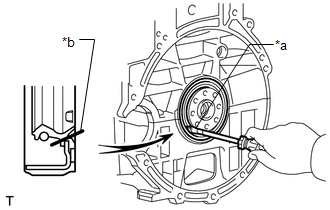

Using a knife, cut off the rear engine oil seal lip.

*a	Protective Tape
*b	Cut Position
