Removal [02/2017 - ]: Procedure

  1. REMOVE REAR ENGINE UNDER COVER RH

    Refer to PROCEDURE - Step 1

  2. REMOVE ENGINE OIL PRESSURE SWITCH ASSEMBLY
    1. Disconnect the engine oil pressure switch assembly connector.

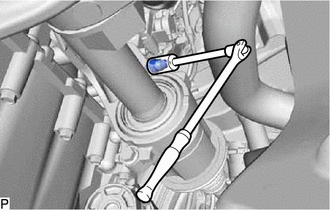

    2. Using a 24 mm deep socket wrench, remove the engine oil pressure switch assembly.
      GTY773937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
