Installation [02/2017 - ]: Procedure

1. Apply adhesive to 2 or 3 threads of the PCV valve (ventilation valve sub-assembly).

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Adhesive

   Adhesive

   Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

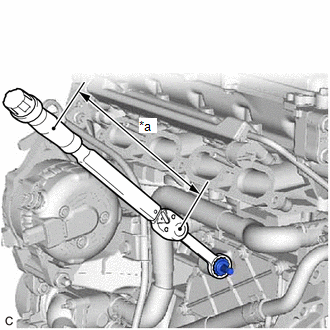

2. Using a 22 mm ball joint lock nut wrench, install the PCV valve (ventilation valve sub-assembly) to the ventilation case.

   Specified tightening torque

   Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Torque Wrench Fulcrum Length

   NOTE:

   Do not start the engine for at least 1 hour after installation.

   HINT:

   • Calculate the torque wrench reading when changing the fulcrum length of the torque wrench.

     Refer to PRECAUTION [02/2017 - 05/2018] , or refer to PRECAUTION [05/2018 - ]

   • When using a 22 mm ball joint lock nut wrench (fulcrum length of 149.75 mm (5.9 in.)) + torque wrench (fulcrum length of 162 mm (6.4 in.)): 10 N*m (102 kgf*cm, 7 ft.*lbf)

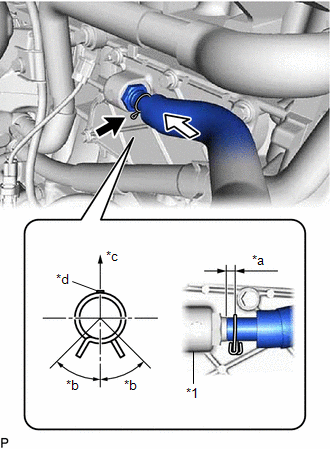

1. Connect the ventilation hose to the PCV valve (ventilation valve sub-assembly) and slide the clip to secure it.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *1	PCV valve (ventilation valve sub-assembly)
   *a	4 to 10 mm (0.157 to 0.394 in.)
   *b	30°
   *c	Top of Vehicle
   *d	Paint Mark

   HINT:

   Engage the clip within the area shown in the illustration.

Refer to INSTALLATION [02/2017 - ]
