Installation [08/2020 - ]: Procedure

1. Install the wire harness clamp bracket to the generator assembly with the bolt.

   Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)

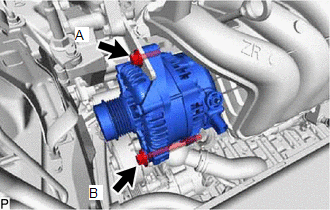

2. Install the generator assembly with the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Bolt A

   Torque: 25 N*m (255 kgf*cm, 18 ft.*lbf)

   Bolt B

   Torque: 43 N*m (438 kgf*cm, 32 ft.*lbf)

3. Engage the clamp to connect the engine wire to the wire harness clamp bracket.
4. Connect the generator assembly connector.
5. Connect the engine wire to terminal B with the nut.

   Torque: 9.8 N*m (100 kgf*cm, 87 in.*lbf)

6. Install the terminal cap to the generator assembly.

Refer to INSTALLATION [02/2017 - ]

Refer to PROCEDURE - Step 2

HINT:

When disconnecting and reconnecting the auxiliary battery, there is an automatic learning function that completes learning when the respective system is used.

Refer to AUTOMATIC LEARNING CHART [08/2020 - ]
