Installation [05/2018 - 09/2019]: Procedure

  1. INSTALL REAR DISC
    1. Align the matchmarks of the rear disc and rear axle hub and bearing assembly, and install the rear disc.
      NOTE:

      When replacing the rear disc with a new one, select the installation position where the rear disc has minimal runout.

      GTY754380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Matchmark
  2. INSTALL REAR DISC BRAKE CYLINDER MOUNTING
    1. Install the rear disc brake cylinder mounting to the rear axle carrier sub-assembly with the 2 bolts.

      Torque: 107 N*m (1091 kgf*cm, 79 ft.*lbf)

  3. INSTALL REAR DISC BRAKE BUSHING DUST BOOT
    1. Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new rear disc brake bushing dust boots.

      HINT:

      Apply more than 0.3 g (0.01 oz.) of lithium soap base glycol grease to each rear disc brake bushing dust boot.

      GTY763973Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lithium Soap Base Glycol Grease
    2. Install the 2 rear disc brake bushing dust boots to the rear disc brake cylinder mounting.
  4. INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN
    1. GTY761870Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lithium Soap Base Glycol Grease

      Apply a light layer of lithium soap base glycol grease to the contact surface of the rear No. 2 disc brake cylinder slide pin.

    2. Install a new rear disc brake cylinder slide bushing to the rear No. 2 disc brake cylinder slide pin.
    3. GTY766622Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Lithium Soap Base Glycol Grease

      Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin.

    4. Install the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin to the rear disc brake cylinder mounting.
      GTY745245Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 Rear No. 1 Disc Brake Cylinder Slide Pin
      *2 Rear No. 2 Disc Brake Cylinder Slide Pin
    5. Push the rear No. 1 disc brake cylinder slide pin and rear No. 2 disc brake cylinder slide pin into each rear disc brake bushing dust boot to engage the pins to the boots.
  5. INSTALL REAR DISC BRAKE PAD SUPPORT PLATE
    1. Install the 4 rear disc brake pad support plates to the rear disc brake cylinder mounting.
      NOTE:

      Be sure to install each rear disc brake pad support plate in the correct position and direction.

  6. INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM

    Refer to PROCEDURE - Step 1

  7. INSTALL REAR DISC BRAKE PAD
    1. Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.
      NOTE:

      Install the rear disc brake pad so that the rear disc brake pad wear indicator plate is mounted on the lower side of the vehicle.

      HINT:

      If the rear disc brake pad has an identification mark, be sure to confirm the installation location.

      GTY770148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Inner Side (Brown)
      *b Outer Side (Green)
  8. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY
    1. Hold the 2 rear disc brake cylinder slide pins, and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 new bolts in the order shown in the illustration.

      Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)

      GTY753428Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Hold
      *b Turn
  9. INSTALL PARKING BRAKE ACTUATOR ASSEMBLY
    1. Apply a light coat of lithium soap base glycol grease to a new O-ring.
    2. Install the O-ring to the rear disc brake cylinder assembly.
      NOTE:

      Make sure to replace the O-ring with a new one when installing the parking brake actuator assembly.

    3. Using a 5 mm hexagon socket wrench, install the parking brake actuator assembly to the rear disc brake cylinder assembly with the 2 bolts.

      Torque: 8.4 N*m (86 kgf*cm, 74 in.*lbf)

  10. CONNECT NO. 2 PARKING BRAKE WIRE ASSEMBLY
    1. Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.
  11. CONNECT REAR FLEXIBLE HOSE
    1. Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

      Torque: 30.4 N*m (310 kgf*cm, 22 ft.*lbf)

      NOTE:

      Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

  12. BLEED BRAKE LINE

    Refer to BLEEDING [05/2018 - ]

  13. BLEED REAR DISC BRAKE CYLINDER ASSEMBLY
    WARNING:

    If the rear disc brake cylinder assembly has been disassembled, perform air bleeding for the rear disc brake cylinder.

    NOTE:
    • Perform air bleeding while maintaining the brake fluid level between the MAX and MIN lines on the brake fluid reservoir.
    • Do not allow brake fluid to contact any painted surface. If brake fluid leaks onto any painted surface, immediately wash it off.

    HINT:

    • Use the same procedure for the RH side and LH side.
    • The following procedure is for the LH side.
    • While performing air bleeding of the rear disc brake assembly, the bolt can be reused during the bleeding procedure. After air bleeding is complete, replace the bolt with a new one.
    1. Perform the procedure to enter rear disc brake pad replacement mode 5 times.

      Refer to TEST MODE PROCEDURE [02/2017 - ]

    2. Release the parking brake.
    3. Disconnect the No. 2 parking brake wire assembly connector from the parking brake actuator assembly.

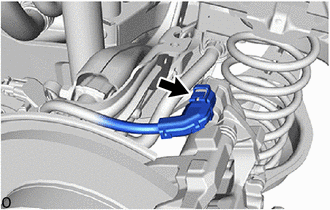

      GTY749424Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Remove the center No. 1 cowl top ventilator louver.

      Refer to PROCEDURE - Step 1

    5. Remove the brake master cylinder reservoir filler cap.
    6. Add brake fluid to keep the level between the MIN and MAX lines of the reservoir while bleeding the brakes.
      NOTE:
      • Make sure that there is sufficient brake fluid in the reservoir.
      • If brake fluid leaks onto any painted surface, immediately wash it off.
      • Do not remove the filter from the brake master cylinder reservoir and be sure to fill the brake master cylinder reservoir with new brake fluid to avoid any potential contamination of the brake system. Contamination, for example by dirt particles or mineral oil, could lead to functional brake problems.
    7. Remove the bolt and separate the rear disc brake cylinder assembly. (*1)
      NOTE:

      Keep the rear no. 2 disc brake cylinder slide pin free of foreign matter.

      GTY747924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
    8. Hold the rear disc brake cylinder assembly horizontally, then tilt it 45° toward the bleeder plug side as shown in the illustration. (*2)
      GTY771254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    9. Temporarily install the rear disc brake cylinder assembly with the bolt. (*3)
      GTY752629Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Turn
      *b Hold
    10. Depress the brake pedal several times, and then loosen the bleeder plug with the pedal depressed. (*4)
    11. When fluid stops coming out, tighten the bleeder plug and release the brake pedal. (*5)
    12. Repeat steps (*1) through (*5) 3 times.
      NOTE:

      If there is still air in the system after performing steps (*1) through (*5) 3 times, repeat the steps (*1) through (*5) until the air has been bled.

    13. Tighten the bleeder plug completely.

      Torque: 8.3 N*m (85 kgf*cm, 73 in.*lbf)

    14. Install the rear disc brake cylinder assembly with a new bolt.

      Torque: 34.3 N*m (350 kgf*cm, 25 ft.*lbf)

    15. Connect the No. 2 parking brake wire assembly connector to the parking brake actuator assembly.
    16. Inspect for brake fluid leaks.
    17. Inspect the brake fluid level in the reservoir.

      Refer to ON-VEHICLE INSPECTION [02/2017 - ]

    18. Install the brake master cylinder reservoir filler cap assembly.
    19. Install the center No. 1 cowl top ventilator louver.

      Refer to PROCEDURE - Step 6

  14. INSTALL REAR WHEEL

    Refer to INSTALLATION [05/2018 - ]

  15. NORMAL CONDITION RECOVERY

    Refer to TEST MODE PROCEDURE [02/2017 - ]
