Removal [08/2020 - 12/2021]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [10/2017 - 12/2021]

  2. REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

    Refer to PROCEDURE - Step 3

  3. REMOVE WATER GUARD PLATE LH (w/ Plate)

    Refer to PROCEDURE - Step 4

  4. REMOVE COWL BODY MOUNTING REINFORCEMENT LH

    Refer to PROCEDURE - Step 5

  5. REMOVE COWL BODY MOUNTING REINFORCEMENT RH

    Refer to PROCEDURE - Step 6

  6. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7

  7. REMOVE BATTERY

    Refer to REMOVAL [08/2020 - ]

  8. REMOVE VACUUM WARNING SWITCH ASSEMBLY (for TMC Made)

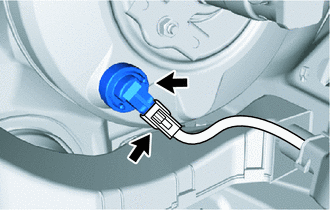

    1. Disconnect the connector from the vacuum warning switch assembly.
      GTY892583Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the vacuum warning switch assembly from the brake booster assembly.
    3. Remove the check valve grommet from the brake booster assembly.
  9. REMOVE VACUUM WARNING SWITCH ASSEMBLY (for TMMT Made)
    1. Disconnect the connector from the vacuum warning switch assembly.
      GTY750618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the vacuum warning switch assembly from the brake booster assembly.
    3. Remove the check valve grommet from the brake booster assembly.
