Removal [02/2017 - 09/2019]: Procedure

  1. REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 12/2021]

  2. REMOVE NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

    Refer to PROCEDURE - Step 3 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 3 [10/2017 - 09/2019]

  3. REMOVE WATER GUARD PLATE LH

    Refer to PROCEDURE - Step 4 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 4 [10/2017 - 09/2019]

  4. REMOVE COWL BODY MOUNTING REINFORCEMENT LH

    Refer to PROCEDURE - Step 5 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 5 [10/2017 - 09/2019]

  5. REMOVE COWL BODY MOUNTING REINFORCEMENT RH

    Refer to PROCEDURE - Step 6 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 6 [10/2017 - 09/2019]

  6. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 7 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 7 [10/2017 - 09/2019]

  7. REMOVE BATTERY

    Refer to REMOVAL [02/2017 - 08/2020]

  8. REMOVE OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to REMOVAL [02/2017 - 09/2019]

  9. REMOVE VACUUM WARNING SWITCH ASSEMBLY

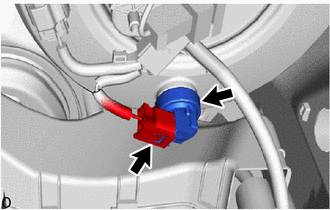

    1. Disconnect the connector from the vacuum warning switch assembly.
      GTY750618Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the vacuum warning switch assembly from the brake booster assembly.
    3. Remove the check valve grommet from the brake booster assembly.
