Installation [09/2019 - 12/2021]: Procedure

  1. INSTALL VACUUM WARNING SWITCH ASSEMBLY (for TMC Made)
    1. Install a new check valve grommet to the brake booster assembly.

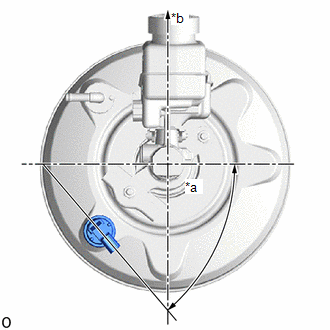

    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY863532Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 50° +/- 10°
      *b Up
    3. Connect the connector to the vacuum warning switch assembly.
  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY (for TMMT Made)
    1. Install a new check valve grommet to the brake booster assembly.
    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY765390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 63° +/- 4°
      *b Up
    3. Connect the connector to the vacuum warning switch assembly.
  3. INSTALL BATTERY

    Refer to INSTALLATION [02/2017 - 08/2020] , or refer to INSTALLATION [08/2020 - ]

  4. INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY

    Refer to PROCEDURE - Step 15

  5. INSTALL COWL BODY MOUNTING REINFORCEMENT RH

    Refer to PROCEDURE - Step 16

  6. INSTALL COWL BODY MOUNTING REINFORCEMENT LH

    Refer to PROCEDURE - Step 17

  7. INSTALL WATER GUARD PLATE LH (w/ Plate)

    Refer to PROCEDURE - Step 18

  8. INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL

    Refer to PROCEDURE - Step 19

  9. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY

    Refer to INSTALLATION [10/2017 - 12/2021]
