Installation [02/2017 - 09/2019]: Procedure

INSTALL VACUUM WARNING SWITCH ASSEMBLY

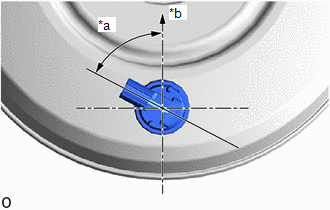

Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	63° +/- 4°
*b	Up

REMOVE BATTERY
Refer to INSTALLATION [02/2017 - 08/2020]
INSTALL OUTER COWL TOP PANEL SUB-ASSEMBLY
Refer to PROCEDURE - Step 15 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 15 [10/2017 - 09/2019]
INSTALL COWL BODY MOUNTING REINFORCEMENT RH
Refer to PROCEDURE - Step 16 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 16 [10/2017 - 09/2019]
INSTALL COWL BODY MOUNTING REINFORCEMENT LH
Refer to PROCEDURE - Step 17 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 17 [10/2017 - 09/2019]
INSTALL WATER GUARD PLATE LH
Refer to PROCEDURE - Step 18 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 18 [10/2017 - 09/2019]
INSTALL NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL
Refer to PROCEDURE - Step 19 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 19 [10/2017 - 09/2019]
INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
Refer to INSTALLATION [02/2017 - 10/2017] , or refer to INSTALLATION [10/2017 - 12/2021]
