Components [09/2019 - 12/2021]

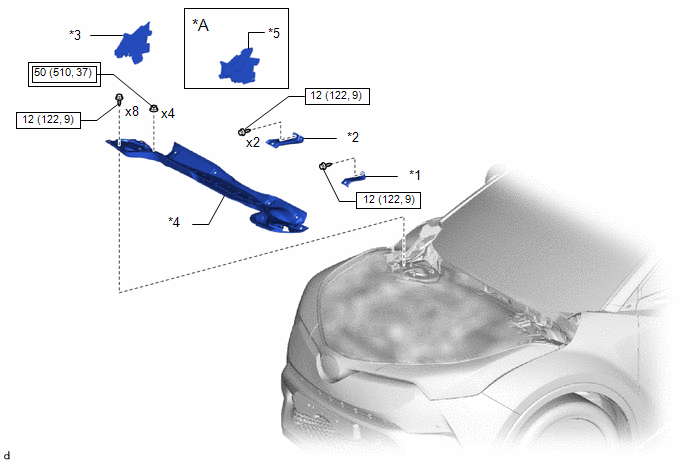

Fig 1: Vacuum Warning Switch Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*A	w/ Plate	-	-
*1	COWL BODY MOUNTING REINFORCEMENT LH	*2	COWL BODY MOUNTING REINFORCEMENT RH
*3	NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL	*4	OUTER COWL TOP PANEL SUB-ASSEMBLY
*5	WATER GUARD PLATE LH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

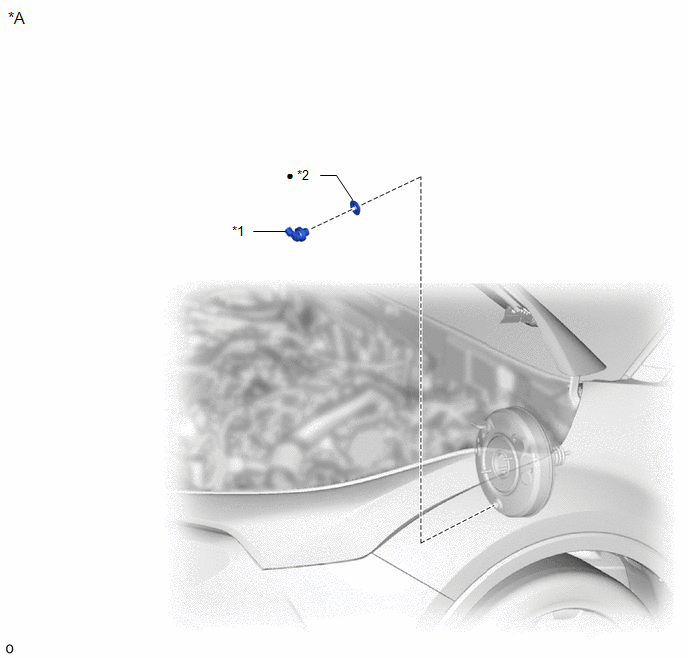

Fig 2: Vacuum Warning Switch Replacement Components (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*A	for TMC Made	-	-
*1	VACUUM WARNING SWITCH ASSEMBLY	*2	CHECK VALVE GROMMET
•	Non-reusable part	-	-

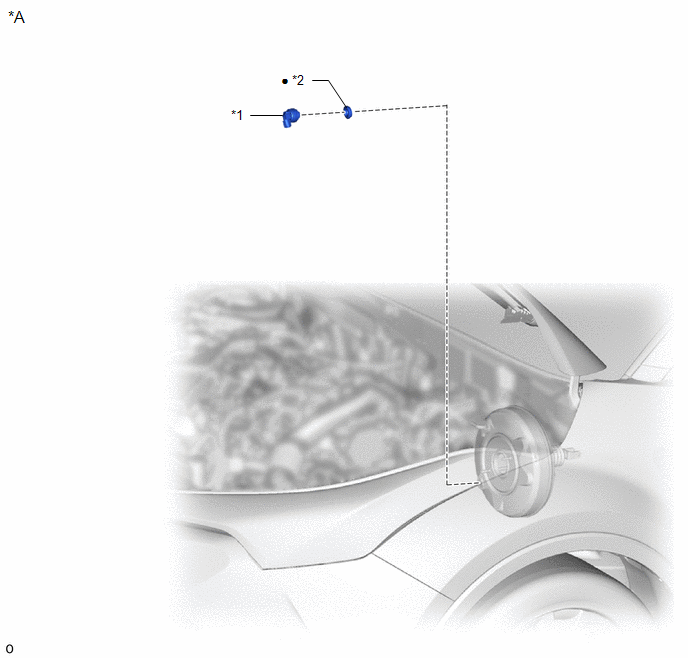

Fig 3: Vacuum Warning Switch Replacement Components (3 Of 3)

*A	for TMMT Made	-	-
*1	VACUUM WARNING SWITCH ASSEMBLY	*2	CHECK VALVE GROMMET
•	Non-reusable part	-	-
