Removal [02/2017 - 08/2020]: Procedure

  1. REMOVE BATTERY

    Refer to REMOVAL [02/2017 - 08/2020]

  2. REMOVE NO. 2 CYLINDER HEAD COVER

    Refer to PROCEDURE - Step 1

  3. DISCONNECT ENGINE WIRE

    Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 08/2020]

  4. REMOVE VACUUM PUMP ASSEMBLY

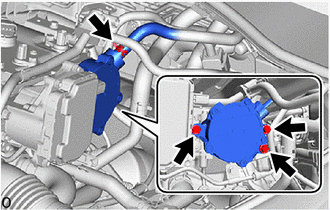

    1. Slide the clip and disconnect the union to connector tube hose from the vacuum pump assembly.
      GTY750630Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 bolts and vacuum pump assembly from the engine assembly.
    3. Remove the No. 2 O-ring and No. 3 O-ring from the vacuum pump assembly.
      GTY484925Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 O-ring
      *2 No. 3 O-ring
