Components [02/2017 - ]

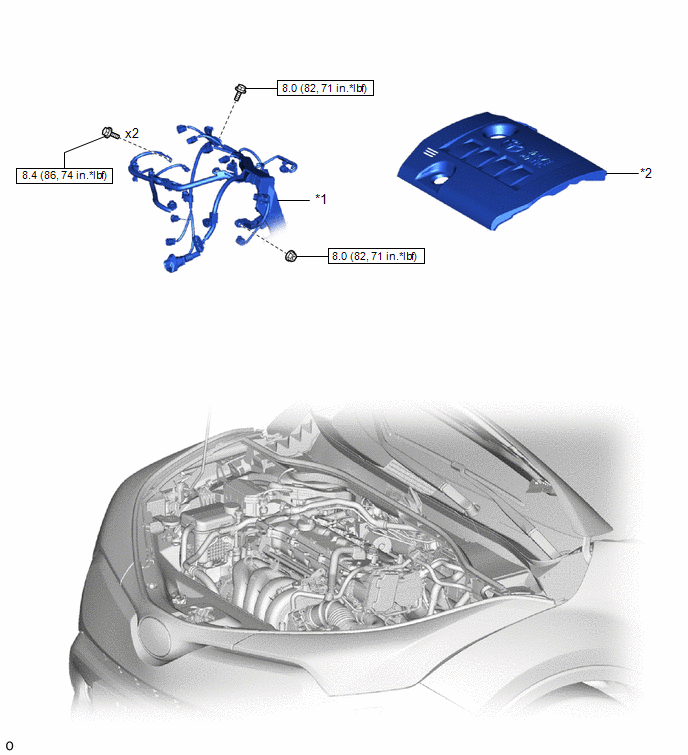

Fig 1: Vacuum Pump Replacement Components With Torque Specifications (1 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	ENGINE WIRE	*2	NO. 2 CYLINDER HEAD COVER
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

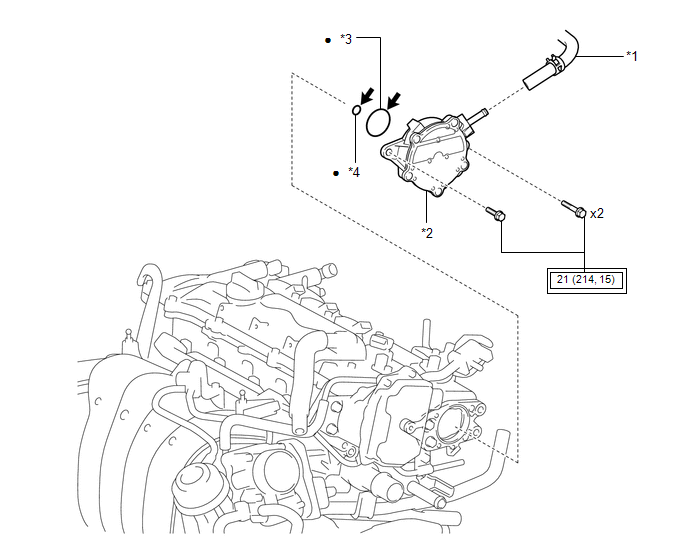

Fig 2: Vacuum Pump Replacement Components With Torque Specifications (2 Of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	UNION TO CONNECTOR TUBE HOSE	*2	VACUUM PUMP ASSEMBLY
*3	NO. 2 O-RING	*4	NO. 3 O-RING
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	Engine oil	-	-

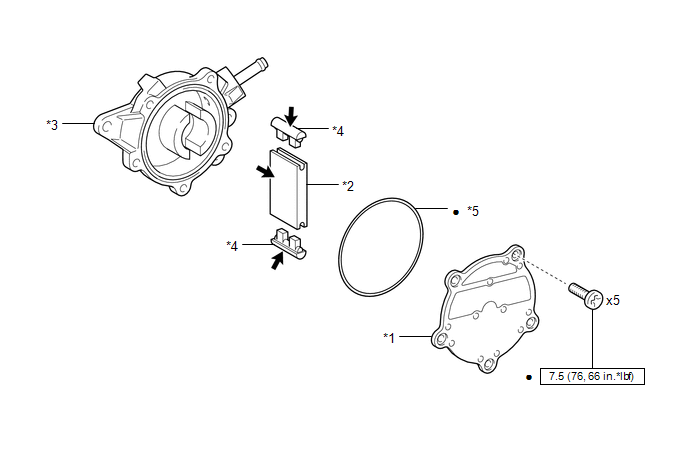

Fig 3: Vacuum Pump Replacement Components With Torque Specifications (3 Of 3)

Callout	Description	Callout	Description
*1	END COVER	*2	VACUUM PUMP VANE
*3	VACUUM PUMP HOUSING	*4	VACUUM PUMP VANE CAP
*5	NO. 1 O-RING	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part
	Engine oil	-	-
