Removal [02/2017 - 08/2020]: Procedure

Refer to REMOVAL [02/2017 - 10/2017] , or refer to REMOVAL [10/2017 - 05/2018] , or refer to REMOVAL [05/2018 - 09/2019] , or refer to REMOVAL [09/2019 - 08/2020]

Refer to REMOVAL [02/2017 - 08/2020]

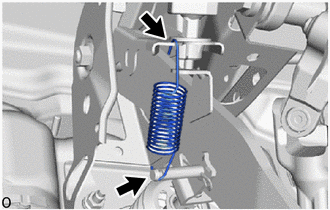

1. Remove the brake pedal return spring from the brake pedal support assembly and push rod pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the clip and push rod pin to separate the brake pedal support assembly from the brake master cylinder push rod clevis.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

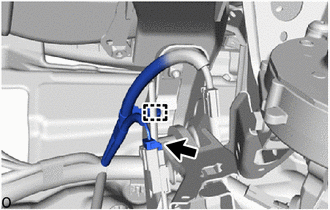

1. Disconnect the brake pedal load sensing switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Disengage the clamp to separate the wire harness from the brake pedal support assembly.

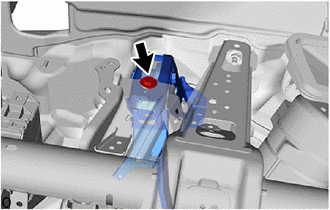

3. Remove the bolt and separate the brake pedal support assembly from the instrument panel reinforcement assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Remove the 2 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

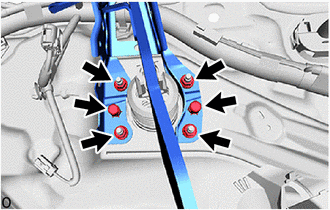

5. Remove the 4 nuts and brake pedal support assembly.
6. Remove the nut from the brake pedal support assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the brake pedal pad from the brake pedal support assembly.
