Installation [02/2017 - ]: Procedure

1. Install the brake pedal pad from the brake pedal support assembly.

1. Install the nut to the brake pedal support assembly.
2. Temporarily install the brake pedal support assembly with 2 new clips.

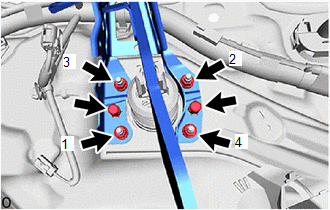

   Fig 1: Brake Pedal Support Assembly Nuts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 4 nuts.

   Torque: 12.7 N*m (130 kgf*cm, 9 ft.*lbf)

   NOTE:

   Tighten the nuts in the order shown in the illustration.

4. Install the brake pedal support assembly to the instrument panel reinforcement assembly with the bolt.

   Torque: 23.6 N*m (241 kgf*cm, 17 ft.*lbf)

5. w/ Brake pedal Load Sensing Switch:
   1. Engage the clamp to install the wire harness to the brake pedal support assembly.
   2. Connect the brake pedal load sensing switch connector.

1. Apply lithium soap base glycol grease to the push rod pin.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Lithium Soap Base Glycol Grease

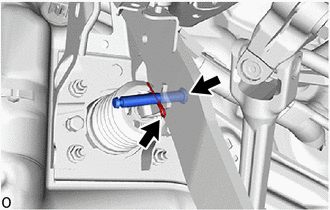

2. Connect the brake master cylinder push rod clevis to the brake pedal support assembly with the push rod pin, and install a new clip as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Be sure to install the push rod pin in the correct direction.

1. Install the brake pedal return spring to the brake pedal support assembly and push rod pin.

Refer to INSTALLATION [02/2017 - ]

Refer to INSTALLATION [02/2017 - 10/2017] , or refer to INSTALLATION [10/2017 - 12/2017] , or refer to INSTALLATION [12/2017 - 05/2018] , or refer to INSTALLATION [05/2018 - 09/2019] , or refer to INSTALLATION [09/2019 - 08/2020] , or refer to INSTALLATION [08/2020 - 12/2021] , or refer to INSTALLATION [12/2021 - ]

Refer to ADJUSTMENT [02/2017 - 09/2019] , or refer to ADJUSTMENT [09/2019 - ]
