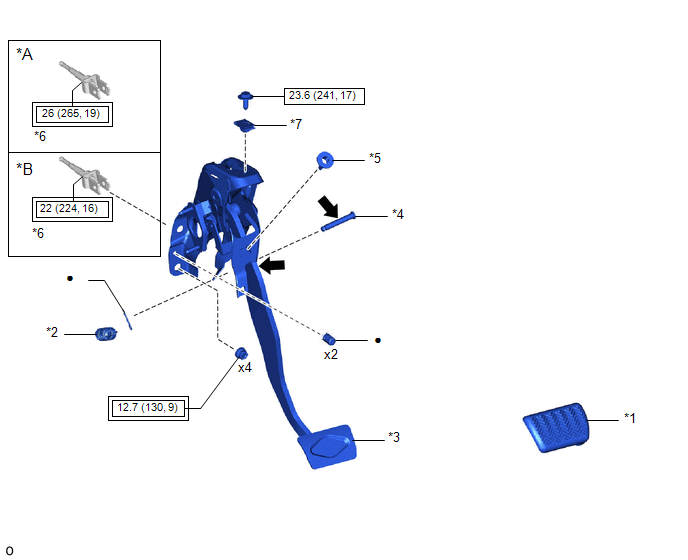

Components [09/2019 - ]
| Callout | Description | Callout | Description |
| *A | for TMC Made | *B | for TMMT Made |
| *1 | BRAKE PEDAL PAD | *2 | BRAKE PEDAL RETURN SPRING |
| *3 | BRAKE PEDAL SUPPORT ASSEMBLY | *4 | PUSH ROD PIN |
| *5 | STOP LIGHT SWITCH MOUNTING ADJUSTER | *6 | CLEVIS LOCK NUT |
| *7 | NUT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque | ||
| • | Non-reusable part | Lithium soap base glycol grease |
