Components [02/2017 - 09/2019]
| Callout | Description | Callout | Description |
| *1 | COWL BODY MOUNTING REINFORCEMENT LH | *2 | COWL BODY MOUNTING REINFORCEMENT RH |
| *3 | NO. 1 HEATER AIR DUCT SPLASH SHIELD SEAL | *4 | OUTER COWL TOP PANEL SUB-ASSEMBLY |
| *5 | WATER GUARD PLATE LH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | N*m (kgf*cm, ft.*lbf): Specified torque |

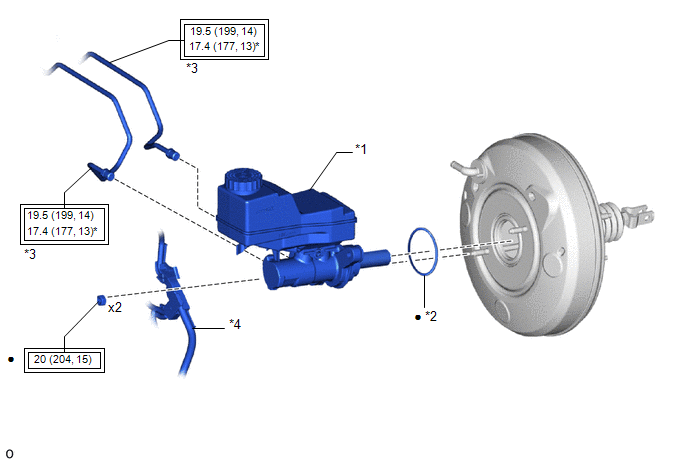

| Callout | Description | Callout | Description |
| *1 | BRAKE MASTER CYLINDER SUB-ASSEMBLY | *2 | BRAKE MASTER CYLINDER O-RING |
| *3 | BRAKE TUBE | *4 | WIRE HARNESS BRACKET |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | * | For use with a union nut wrench | |
| • | Non-reusable part | - | - |

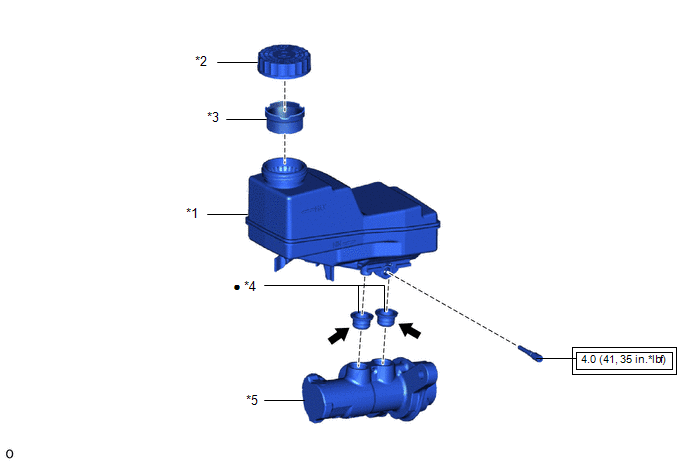

| Callout | Description | Callout | Description |
| *1 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY | *2 | BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY |
| *3 | BRAKE MASTER CYLINDER RESERVOIR STRAINER | *4 | MASTER CYLINDER RESERVOIR GROMMET |
| *5 | BRAKE MASTER CYLINDER BODY | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part | |
| Lithium soap base glycol grease | - | - |
