Components [05/2018 - 09/2019]

Fig 1: Brake Fluid Replacement Components With Torque Specifications (1 Of 2)
GTY872091Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for TMC Made - -
*1 CENTER NO. 1 COWL TOP VENTILATOR LOUVER *2 BRAKE MASTER CYLINDER RESERVOIR CAP ASSEMBLY
*3 FRONT DISC BRAKE BLEEDER PLUG *4 FRONT DISC BRAKE BLEEDER PLUG CAP
*5 REAR DISC BRAKE BLEEDER PLUG *6 REAR DISC BRAKE BLEEDER PLUG CAP
*7 HOOD TO COWL TOP SEAL - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -

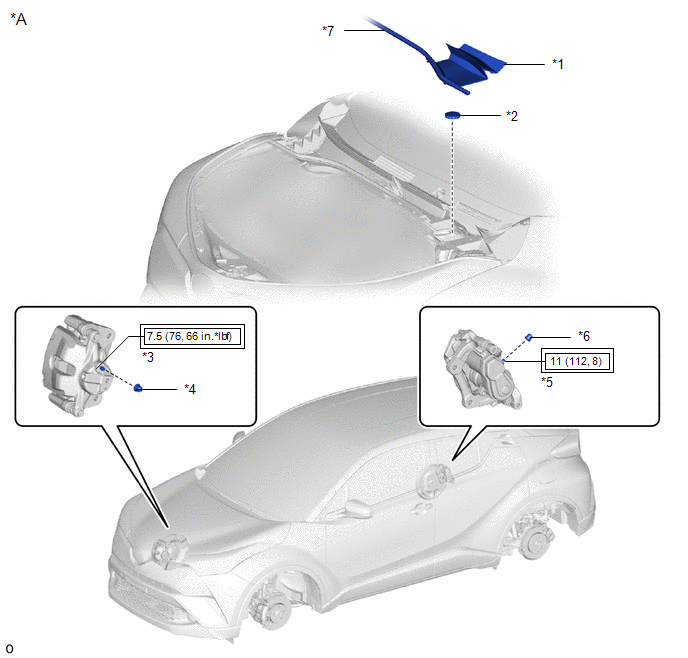

Fig 2: Brake Fluid Replacement Components With Torque Specifications (2 Of 2)
GTY936550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for TMMT Made - -
*1 CENTER NO. 1 COWL TOP VENTILATOR LOUVER *2 BRAKE MASTER CYLINDER RESERVOIR FILLER CAP ASSEMBLY
*3 FRONT DISC BRAKE BLEEDER PLUG *4 FRONT DISC BRAKE BLEEDER PLUG CAP
*5 REAR DISC BRAKE BLEEDER PLUG *6 REAR DISC BRAKE BLEEDER PLUG CAP
*7 HOOD TO COWL TOP SEAL - -
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) - -
