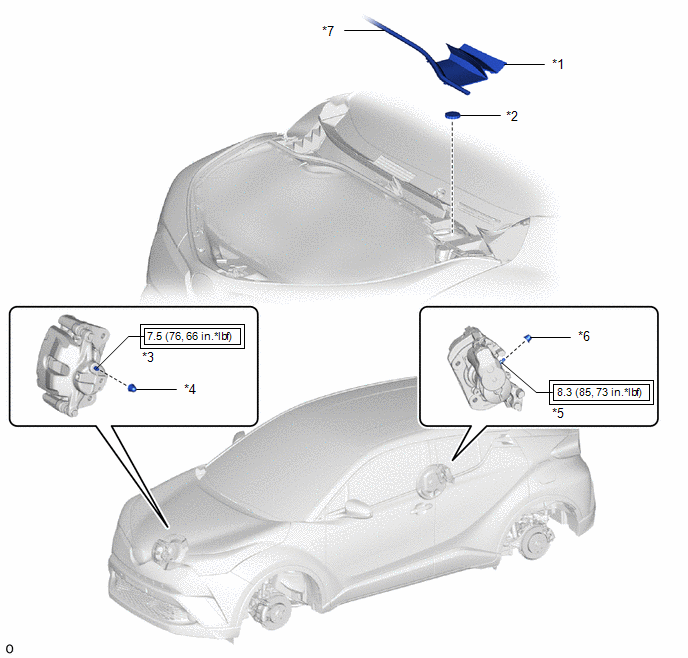

Components [02/2017 - 05/2018]
| Callout | Description | Callout | Description |
| *1 | CENTER NO. 1 COWL TOP VENTILATOR LOUVER | *2 | BRAKE MASTER CYLINDER RESERVOIR CAP ASSEMBLY |
| *3 | FRONT DISC BRAKE BLEEDER PLUG | *4 | FRONT DISC BRAKE BLEEDER PLUG CAP |
| *5 | REAR DISC BRAKE BLEEDER PLUG | *6 | REAR DISC BRAKE BLEEDER PLUG CAP |
| *7 | HOOD TO COWL TOP SEAL | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | - | - |
