Removal [02/2017 - 09/2019]: Procedure

Refer to REMOVAL [02/2017 - 08/2020]

Refer to REMOVAL [02/2017 - 09/2019]

See step  4

1. Loosen the clevis lock nut of the brake master cylinder push rod clevis.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

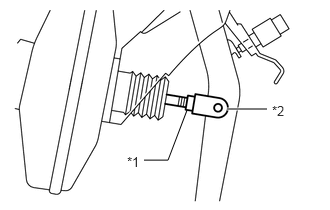

   *1	Clevis Lock Nut
   *2	Brake Master Cylinder Push Rod Clevis

See step  5

Refer to PROCEDURE - Step 7 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 7 [10/2017 - 08/2020]

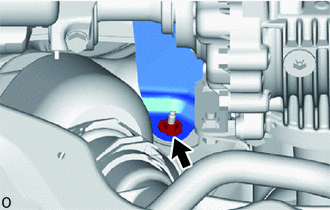

1. Remove the nut.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

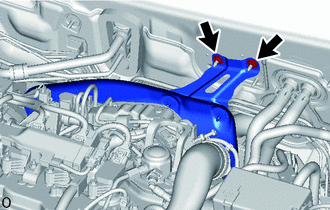

2. Remove the 2 nuts and the dash panel heat insulator.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

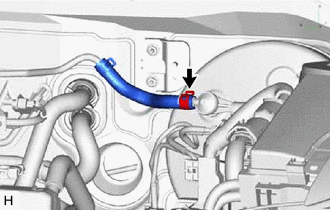

1. Slide the clip and disconnect the check valve to connector tube hose from the brake booster assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

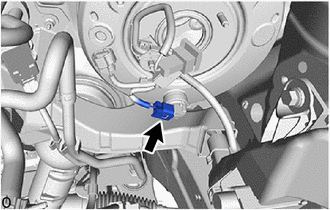

1. Disconnect the vacuum warning switch connector.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

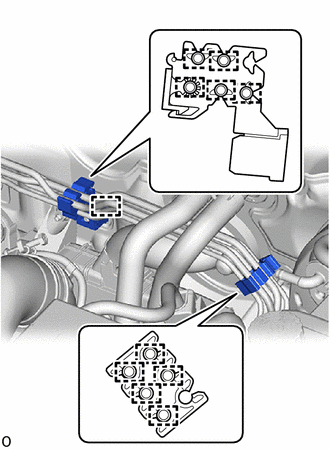

2. Disengage the 5 camps to remove the No. 1 brake tube clamp from the brake tubes.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

3. Disengage the 5 clamps to separate the No. 2 brake tube clamps from the brake tubes.
4. Disengage the clamp to remove the No. 2 brake tube clamp from the vehicle body.

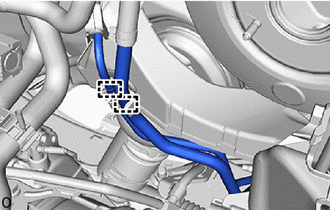

5. Disengage the 2 clamps to separate the fuel pipe from the fuel pipe clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

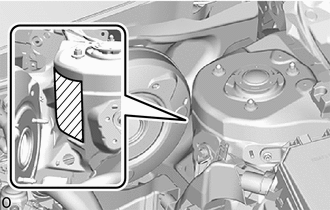

6. Apply protective tape around the vehicle body.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

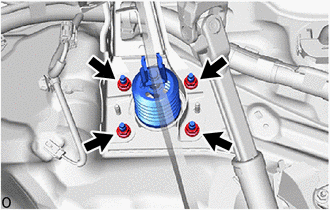

7. Remove the 4 nuts and push the brake booster assembly toward the engine compartment.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not apply excessive force to the brake lines.

8. Remove the brake master cylinder push rod clevis and lock nut from the brake booster assembly.
9. Remove the brake booster assembly from the vehicle body.
   NOTE:

   Do not apply excessive force to the brake lines or refrigerant lines.

1. Remove the brake booster gasket from the brake booster assembly.
