Reassembly [09/2019 - ]: Procedure

  1. INSTALL VACUUM WARNING SWITCH ASSEMBLY (for TMC Made)
    1. Install a new check valve grommet to the brake booster assembly.

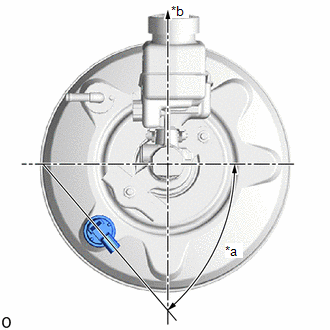

    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY863533Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 50° +/- 10°
      *b Up
  2. INSTALL VACUUM WARNING SWITCH ASSEMBLY (for TMMT Made)
    1. Install a new check valve grommet to the brake booster assembly.
    2. Install the vacuum warning switch assembly to the brake booster assembly as shown in the illustration.
      GTY765390Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 63° +/- 4°
      *b Up
  3. INSTALL BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Install a new check valve grommet to the brake booster assembly.
    2. Install the brake vacuum check valve assembly to the brake booster assembly as shown in the illustration.
      GTY741480Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a for TMC Made: 90° +/- 10°
      for TMMT Made: 90° +/- 4°
      *b Up
