Disassembly [02/2017 - 09/2019]: Procedure

  1. REMOVE BRAKE VACUUM CHECK VALVE ASSEMBLY
    1. Remove the brake vacuum check valve assembly from the brake booster assembly.
    2. Remove the check valve grommet from the brake booster assembly.
  2. REMOVE VACUUM WARNING SWITCH ASSEMBLY

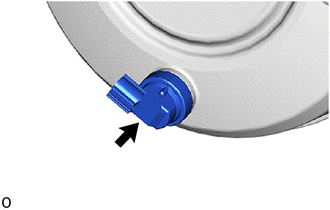

    GTY752801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Remove the vacuum warning switch assembly from the brake booster assembly.
    2. Remove the check valve grommet from the brake booster assembly.
