Components [02/2017 - 09/2019]

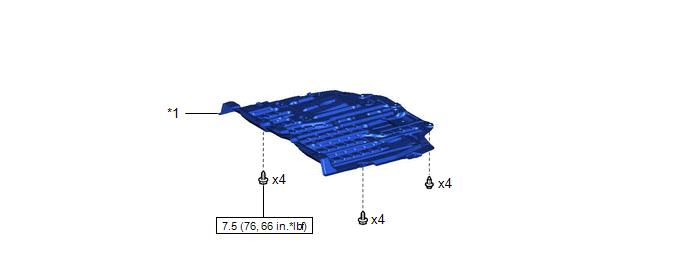

Fig 1: Brake Booster Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 1 ENGINE UNDER COVER	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

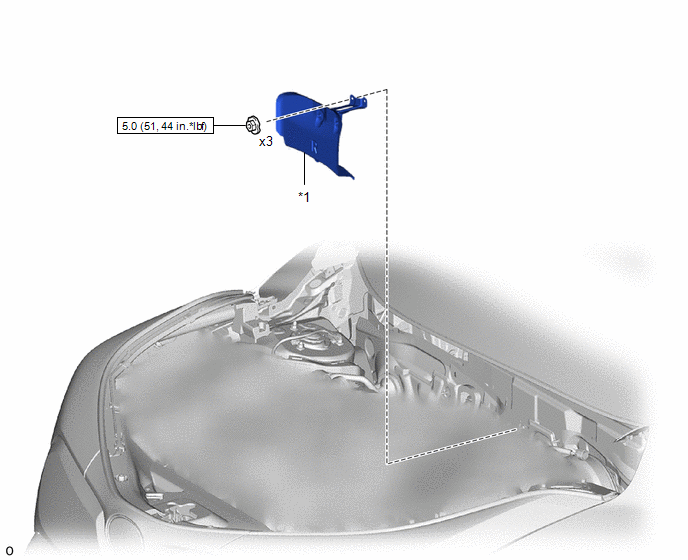

Fig 2: Brake Booster Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	DASH PANEL HEAT INSULATOR	-	-
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

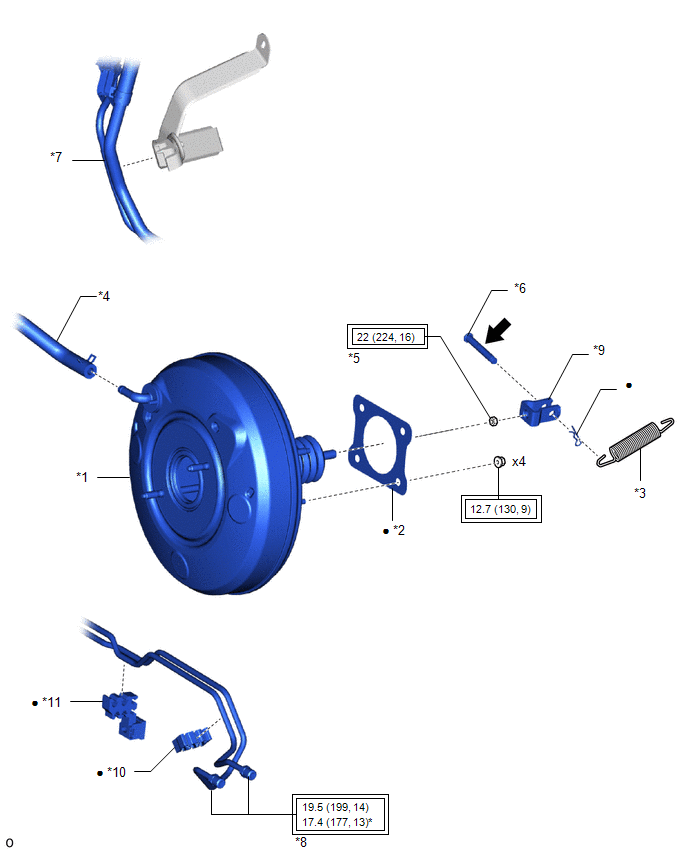

Fig 3: Brake Booster Replacement Components With Torque Specifications (3 Of 4)

Callout	Description	Callout	Description
*1	BRAKE BOOSTER ASSEMBLY	*2	BRAKE BOOSTER GASKET
*3	BRAKE PEDAL RETURN SPRING	*4	CHECK VALVE TO CONNECTOR TUBE HOSE
*5	CLEVIS LOCK NUT	*6	PUSH ROD PIN
*7	FUEL PIPE	*8	BRAKE TUBE
*9	BRAKE MASTER CYLINDER PUSH ROD CLEVIS	*10	NO. 1 BRAKE TUBE CLAMP
*11	NO. 2 BRAKE TUBE CLAMP	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": Nm (kgfcm, ft.*lbf)	•	Non-reusable part
	Lithium soap base glycol grease	-	-

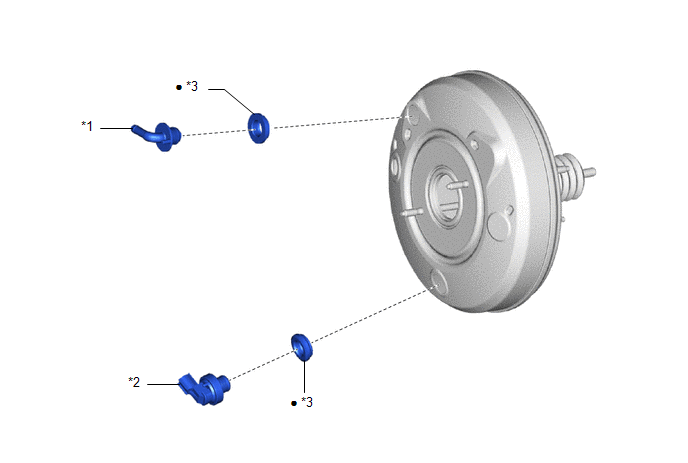

Fig 4: Brake Booster Replacement Components (4 Of 4)

*1	BRAKE VACUUM CHECK VALVE ASSEMBLY	*2	VACUUM WARNING SWITCH ASSEMBLY
*3	CHECK VALVE GROMMET	-	-
•	Non-reusable part	-	-
