Exterior Panels / Trim - Service Information (1 Of 2)
>>
Rocker Panel Moulding
>>
Components [02/2017 - ]
Components [02/2017 - ]

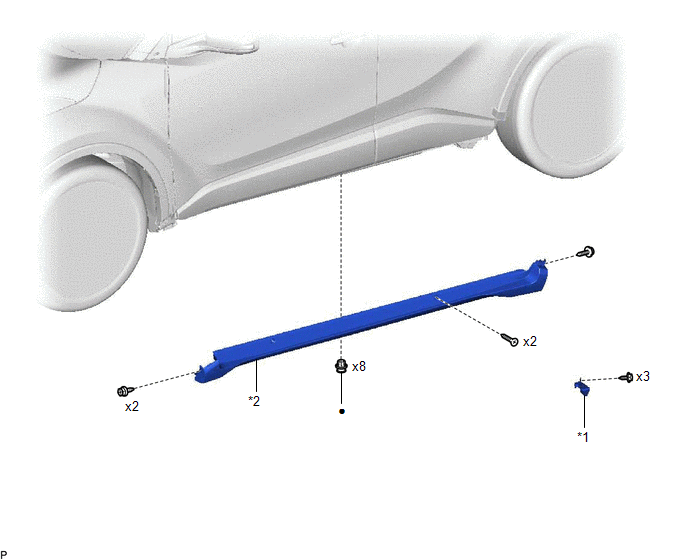

Fig 1: Rocker Panel Moulding Replacement Components (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
REAR WHEEL HOUSE FRONT PLATE
*2
ROCKER PANEL MOULDING
•
Non-reusable part
-
-
Fig 2: Rocker Panel Moulding Replacement Components (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
ROCKER PANEL MOULDING PAD
-
-
•
Non-reusable part
-
-
