Removal [08/2020 - ]: Procedure

  1. REMOVE FRONT DOOR SCUFF PLATE LH

    Refer to PROCEDURE - Step 1

  2. REMOVE COWL SIDE TRIM BOARD LH

    Refer to PROCEDURE - Step 2

  3. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 3

  4. REMOVE NO. 1 AIR DUCT

    Refer to PROCEDURE - Step 10

  5. REMOVE STOP LIGHT SWITCH ASSEMBLY

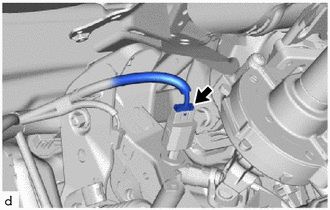

    1. Disconnect the connector.
      GTY767208Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

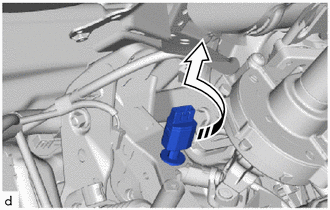

    2. Turn the stop light switch assembly counterclockwise and remove it as shown in the illustration.
      GTY744101Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
