Parts Location [02/2017 - 10/2017]: Illustration

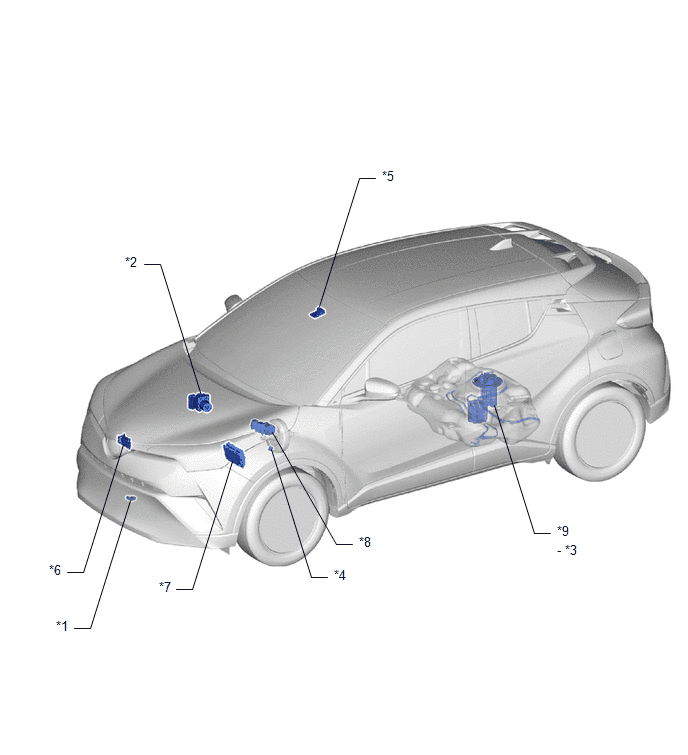

| *1 | THERMISTOR ASSEMBLY (AMBIENT TEMPERATURE SENSOR) | *2 | BRAKE ACTUATOR ASSEMBLY (SKID CONTROL ECU) |
| *3 | FUEL SENDER GAUGE ASSEMBLY | *4 | VACUUM WARNING SWITCH ASSEMBLY |
| *5 | FORWARD RECOGNITION CAMERA | *6 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY |
| *7 | ECM | *8 | BRAKE MASTER CYLINDER RESERVOIR ASSEMBLY (BRAKE FLUID LEVEL WARNING SWITCH) |
| *9 | FUEL SUCTION TUBE WITH PUMP AND GAUGE ASSEMBLY | - | - |
| *A | w/ Washer Level Warning Switch | - | - |
| *1 | LEVEL WARNING SWITCH ASSEMBLY | *2 | HEADLIGHT ASSEMBLY LH |
| *3 | HEADLIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | - | - |

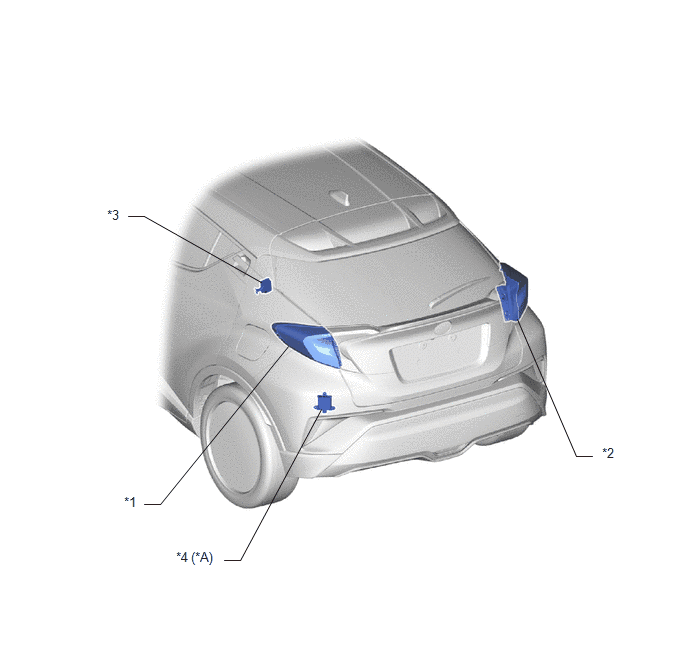

| *A | w/ Blind Spot Monitor System | - | - |
| *1 | REAR COMBINATION LIGHT ASSEMBLY LH | *2 | REAR COMBINATION LIGHT ASSEMBLY RH |
| *3 | TIRE PRESSURE WARNING ECU AND RECEIVER | *4 | BLIND SPOT MONITOR SENSOR LH |

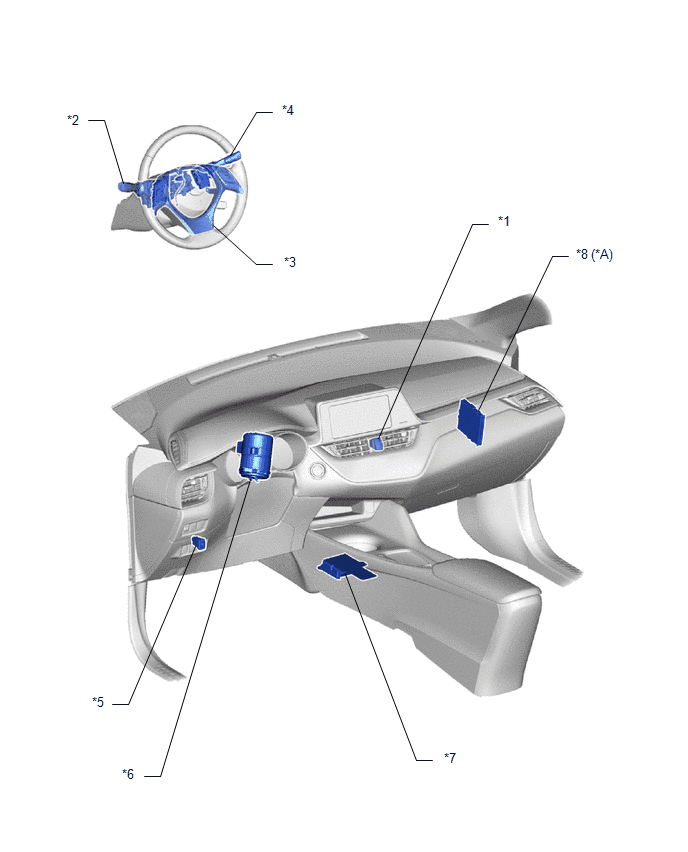

| *A | w/ Smart Key System | - | - |
| *1 | HAZARD WARNING SIGNAL SWITCH | *2 | HEADLIGHT DIMMER SWITCH ASSEMBLY |
| *3 | STEERING PAD SWITCH ASSEMBLY | *4 | WINDSHIELD WIPER SWITCH ASSEMBLY |
| *5 | LIGHT CONTROL RHEOSTAT | *6 | POWER STEERING ECU ASSEMBLY |
| *7 | AIRBAG SENSOR ASSEMBLY | *8 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |

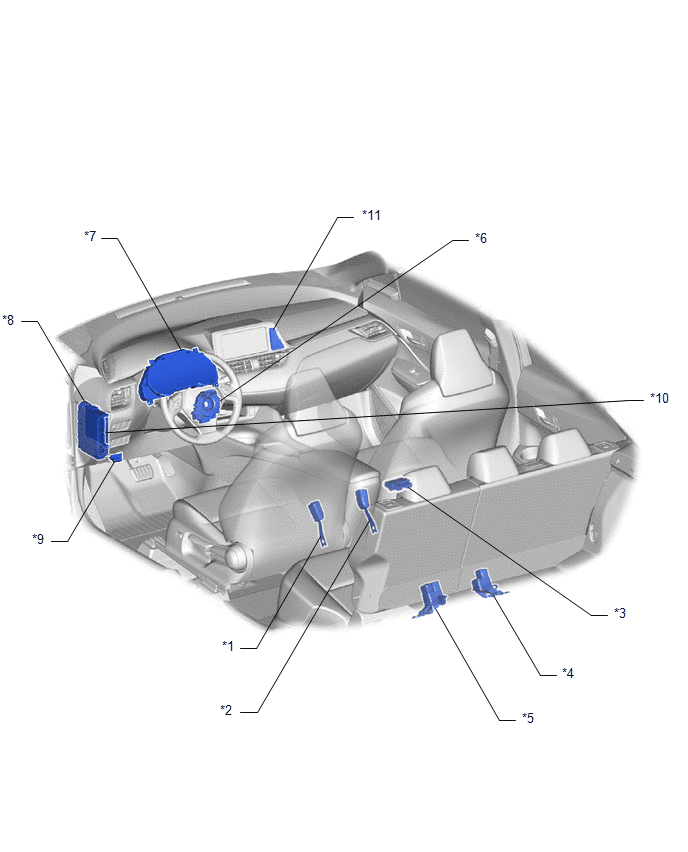

| *1 | FRONT SEAT INNER BELT ASSEMBLY (DRIVER SEAT) | *2 | FRONT SEAT INNER BELT ASSEMBLY (FRONT PASSENGER SEAT) |
| *3 | OCCUPANT DETECTION ECU | *4 | REAR SEAT INNER BELT ASSEMBLY RH |
| *5 | REAR SEAT INNER BELT WITH CENTER ASSEMBLY LH | *6 | SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | DLC3 | *10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | CLOCK ASSEMBLY | - | - |
