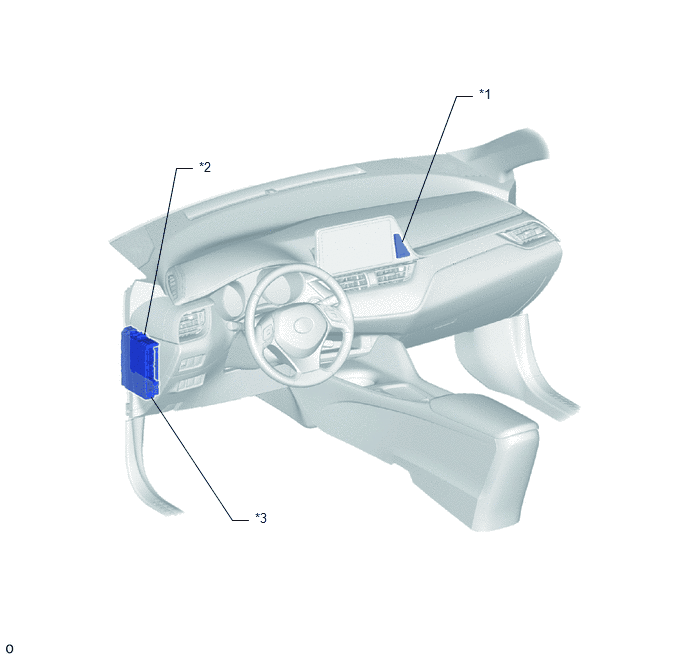

Parts Location [02/2017 - 09/2019]: Illustration

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*1	CLOCK ASSEMBLY	*2	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)
*3	INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ECU-DCC NO. 2 FUSE - ECU-ACC FUSE - PANEL FUSE - ECU-IG1 NO. 4 FUSE - ACC RELAY - TAIL RELAY	-	-
