High Beam Headlight Circuit [08/2020 - ]: Wiring Diagram

for TMMT Made

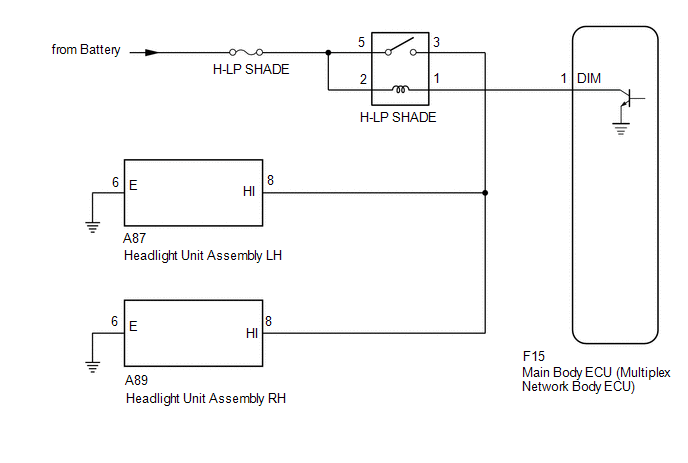

Fig 1: High Beam Headlight Circuit Diagram - For TMMT Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMC Made

Fig 2: High Beam Headlight Circuit Diagram - For TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
