Headlight Dimmer Switch Circuit [12/2021 - ]: Wiring Diagram

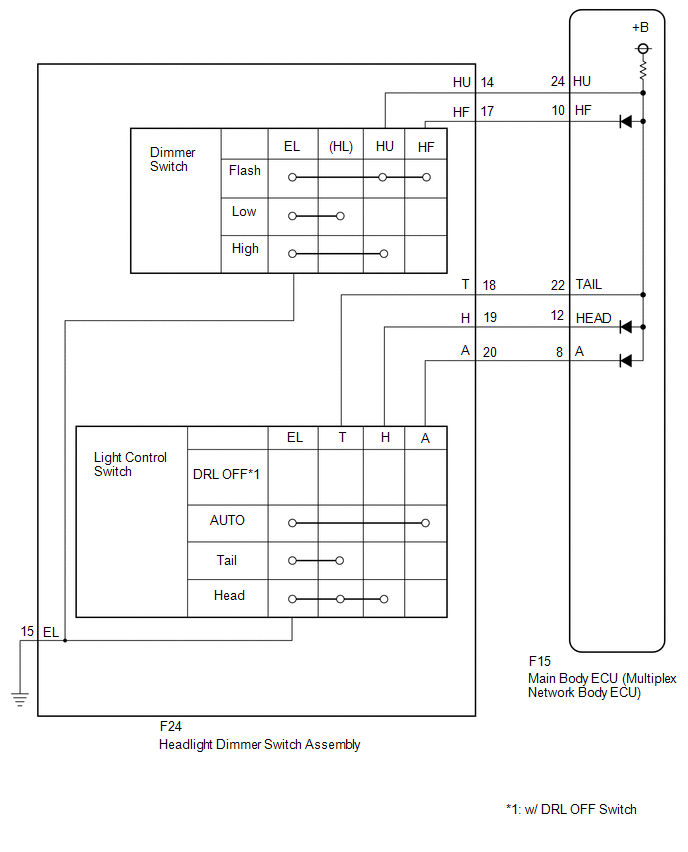

Fig 1: Headlight Dimmer Switch Circuit Diagram

GTY1039174

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
